PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
WHITE & YELLOW (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER
|
BLACK/WHITE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
BLACK (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 1
|
GRAY (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
GREEN (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
BLUE (+)
|
@ IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
GREEN (-)
|
@ BECU, 2ND PLUG DOWN, PIN 2
|
|
|
PARKING LIGHTS ( - )
|
PURPLE (-)
|
@ SWITCH or BECU, 2nd PLUG DOWN, PIN 18
|
|
|
PARKING LIGHTS ( + )
|
WHITE to BROWN (+)
|
@ DRIVERS KICK PANEL, 20-PIN PLUG, PIN 8
|
|
|
POWER LOCK
|

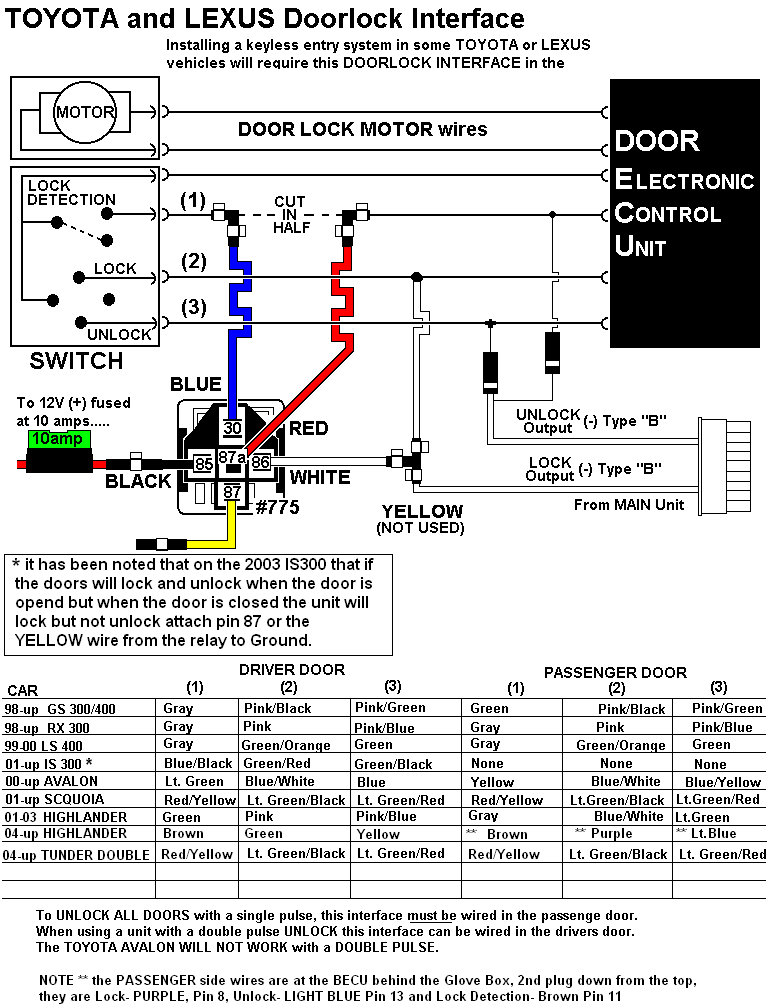

USE TOYOTA/LEXUS DOORLOCK INTERFACE
|
SEE DIAGRAM COLUMN--->
|
|
|
POWER UNLOCK
|
USE TOYOTA/LEXUS DOORLOCK INTERFACE
|
|
|
|
LOCK MOTOR WIRE
|
BLUE (5-WIRE)
|
@ BECU, BOTTOM PLUG, PIN 1
|
|
|
DOOR TRIGGER
|
N/A
|
|
|
|
DOMELIGHT SUPERVISION
|
BROWN (-)
|
@ BECU, BOTTOM PLUG, PIN 11
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
PINK (-)
|
@ BECU, BOTTOM PLUG, PIN 10
|
|
|
TACH
|
NOT REQUIRED FOR REMOTE STARTING
|
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
BLACK (+)
|
@ BRAKE SWITCH ABOVE PEDAL
|
|
|
FACTORY ALARM DISARM
|
USE "KEYSENSE" TO DISARM
|
|
|
|
ANTI-THEFT
|
TOYOTA'S TRANSPONDER ANTI-THEFT SYSTEM
|
|
|
