PONTIAC SUNFIRE

MODEL	YEAR(S
SUNFIRE	2004-2005

KEY	T-HARNESS	IMMOBILIZER
N/A	GM-7	GM's PASSLOCK 2 ANTI-THEFT System, See NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	RED (+)	@ IGNITION SWITCH HARNESS
STARTER	YELLOW (+)	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	PINK (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	N/A
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	ORANGE (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A
PARKING LIGHTS ( - )	N/A

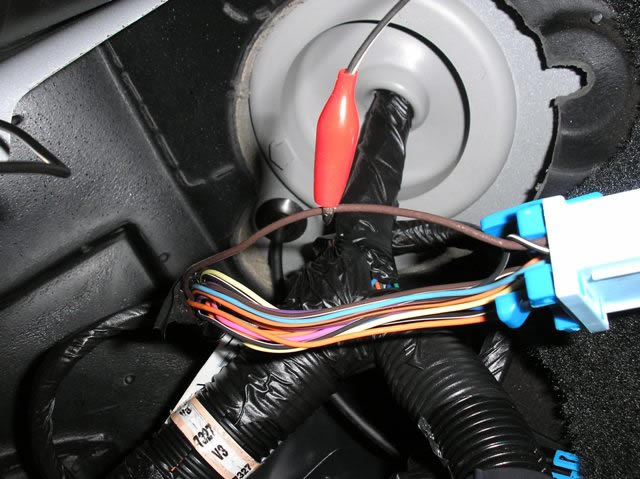

PARKING LIGHTS ( + )	BROWN (+)	@ BCM, BLUE Plug, Pin A1, See NOTE #2
POWER LOCK	LIGHT BLUE (TYPE C) See NOTE #3	@ BCM, PURPLE Plug, Pin A4, See NOTE #2
POWER UNLOCK	WHITE (TYPE C) See NOTE #3	@ BCM, PURPLE Plug, Pin A3, See NOTE #2
LOCK MOTOR WIRE	GRAY (+)	IN DRIVERS KICK PANEL
DOOR TRIGGER	See NOTE #4	@ BCM, See NOTE #2	6469_SUNFIRE_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf

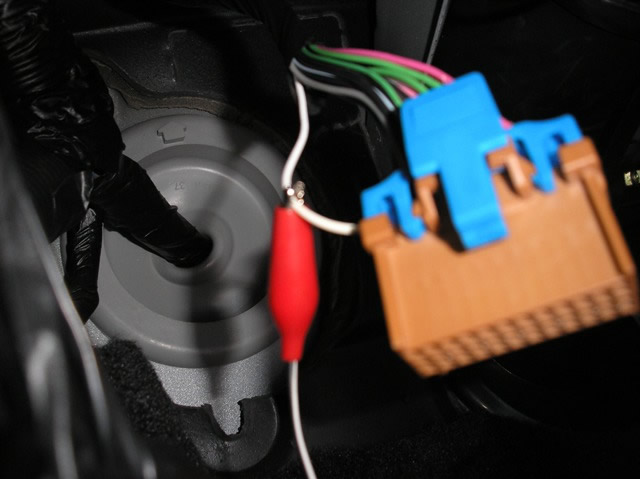

DOMELIGHT SUPERVISION	WHITE (-)	@ BCM, BROWN Plug, Pin A1, See NOTE #2
TRUNK RELEASE	WHITE/BLACK (-)	@ BCM, BLUE PLug, Pin B4, See NOTE #2
SLIDING POWER DOOR	N/A
HORN	BLACK (-)	@ BCM, BROWN Plug, Pin B7, See NOTE #2
TACH	WHITE or ORANGE	@ IGNITION CONTROL Module, See NOTE #5
WAIT TO START LIGHT	N/A
BRAKE	WHITE (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	DISARMS with FACTORY REMOTE ONLY
ANTI-THEFT	YELLOW (+) and BLACK (-) and WHITE (Not Used)	GM's PASSLOCK 2 System, wires are under the Steering Column cover, at the Bottom of the Ignition Switch Tumbler in a BLACK or DARK GRAY Plug

NOTES

NOTE #1: This vehicle is equipped with PONTIAC'S PASSLOCK 2 ANTI-THEFT SYSTEM and will Require a Bypass Module for Remote Starting: To order this part 791 BYPASS MODULE, go to the SECURITY BYPASS MODULE Page on this website. NOTE #2: the BCM (Body Control Module) is located ABOVE the DRIVERS KICK PANEL. NOTE #3: if vehicle is NOT equipped with a FACTORY KEYLESS ENTRY, the Door Locks are a TYPE C with the wires located in each kick panel, you must use the Passenger Switch as the Master Switch. Vehicles with factory keyless are TYPE A Systems. NOTE #4: this vehicle has a GREEN/BLACK (-) Pin A7 for the DRIVERS DOOR and a LIGHT BLUE (-) Pin A8, for the PASSENGER DOOR(S) these wires are located at the BCM. When connecting to an ALARM SYSTEM, use both DOOR TRIGGER wires and DIODE ISOLATE. to connect, See DIAGRAM NOTE #5: the IGNITION CONTROL MODULE is located on the DRIVERS SIDE TOP of the ENGINE.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

Show Large Image This shows the PASSLOCK 2 wires (YELLOW, BLACK and WHITE) in the DARK GRAY or BLACK Plug at the bottom of the Steering Column. Show Large Image To open up the STEERING COLUMN Covers on this vehicle to get to the IGNITION SWITCH HARNESS wiring, you must first remove this TILT WHEEL LEVER, it is removed by unscrewing it from the column. If you look at this Lever on the steel shaft it has a flat sec Show Large Image With the Tilt Wheel Lever removed, you can remove the Screws from the LOWER Steering Column Cover and then seperate the UPPER and LOWER Covers to remove. Show Large Image This shows the IGNITION SWITCH Plug on the LEFT side of the Steering Column. At this Plug you will see a WHITE PLUG in the Bottom and a BLACK PLUG on the LEFT hand side of the plug. Pressing in on the release tabs on each plug, will release the IGNITION H Show Large Image This shows both of the IGNITION SWITCH HARNESS PLUGS, the WHITE PLUG and the BLACK PLUG, these plugs contain all of the needed IGNITION wires. If you are installing a T-HARNESS these will be the plugs the T-HARNESS Part #GM-7 plugs into. Show Large Image This is another view of the PASSLOCK 2 wires, the YELLOW (+) or 1 to 6 Volts DC on a Volt/Ohm Meter, BLACK (-) and WHITE (WHITE wire is NOT USED!!. These wires are shown as they exit the IGNITION SWITCH TUMBER, go to a Plug and then change colors before t Show Large Image To gain access to the BRAKE SWITCH and BRAKE wire, you will need to remove this BLACK cover held in place by (1) 7mm bolt seen in this picture that covers the Brake Switch. Show Large Image With the BRAKE SWITCH Cover removed, you can now see the BRAKE SWITCH and the BRAKE SWITCH Plugs, the (+) WHITE BRAKE wire is in the GRAY Plug in this picture. Show Large Image The BCM is located high-up in the Drivers Kick Panel and under Dash area. This Picture shows the BCM and it plugs. Show Large Image This shows the (-) WHITE DOME LIGHT SUPERVISION wire marked with the RED Clip in the TAN BCM Plug, that was removed for IDENTIFICATION in this picture Show Large Image This shows the (-) BLACK/WHITE TRUNK RELEASE wire in the BLUE BCM Plug removed from the BCM for IDENTIFICATION in this picture. Show Large Image This shows the (+) BROWN PARKING LIGHT wire in the WHITE BCM Plug, removed from the BCM for IDENTIFICATION in this picture. Show Large Image This is a picture of the GM-7 T-HARNESS, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. Show Large Image This is a picture of the GM-7 T-HARNESS Male End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Male End of this T-Harness plugs into the Back of the Ignition Switch of Show Large Image This is a picture of the GM-7 T-HARNESS Female End of this T-Harness, if you purchased a T-Harness for this vehicle, use this picture to make sure you recieved the correct harness. The Female End of this T-Harness plugs into the Ignition Haress that you u
