PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
CONNECT DIRECTLY TO BATTERY
|
|
|
STARTER
|
SEE NOTE #1
|
|
|
|
STARTER 2
|
PURPLE/BROWN (+) thru a 180 Ohm Resistor, See NOTE #1
|
@ IGNITION SWITCH, (BLACK, 5-Pin Plug) Pin 2
|
|
|
IGNITION 1
|
PINK (+)
|
@ IGNITION SWITCH, (BLACK, 5-Pin Plug) Pin 3
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
SEE NOTE #1, Use STARTER 2 wire, (-) thru a 610 Ohm Resistor, See NOTE #1
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
WHITE/PURPLE (+)
|
in DRIVERS KICK PANEL, Harness to Rear of Vehile.
|
|
|
POWER LOCK
|
LIGHT GREEN/PURPLE (-) SEE NOTE #2, (-) thru a 330 Ohm Resistor
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER, (BROWN 20-Pin Plug) Pin 18, SEE DIAGRAM
|

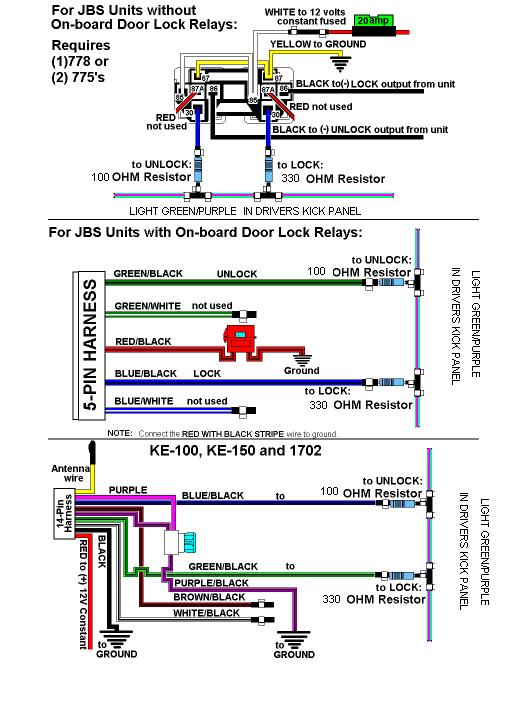

14301_SEBRING-SEDAN_JBS UNITS 1 WIRE DOORLOCKS.JPG
|
|
POWER UNLOCK
|
SAME AS POWER LOCK, (-) thru a 100 Ohm Resistor
|
SEE DIAGRAM
|

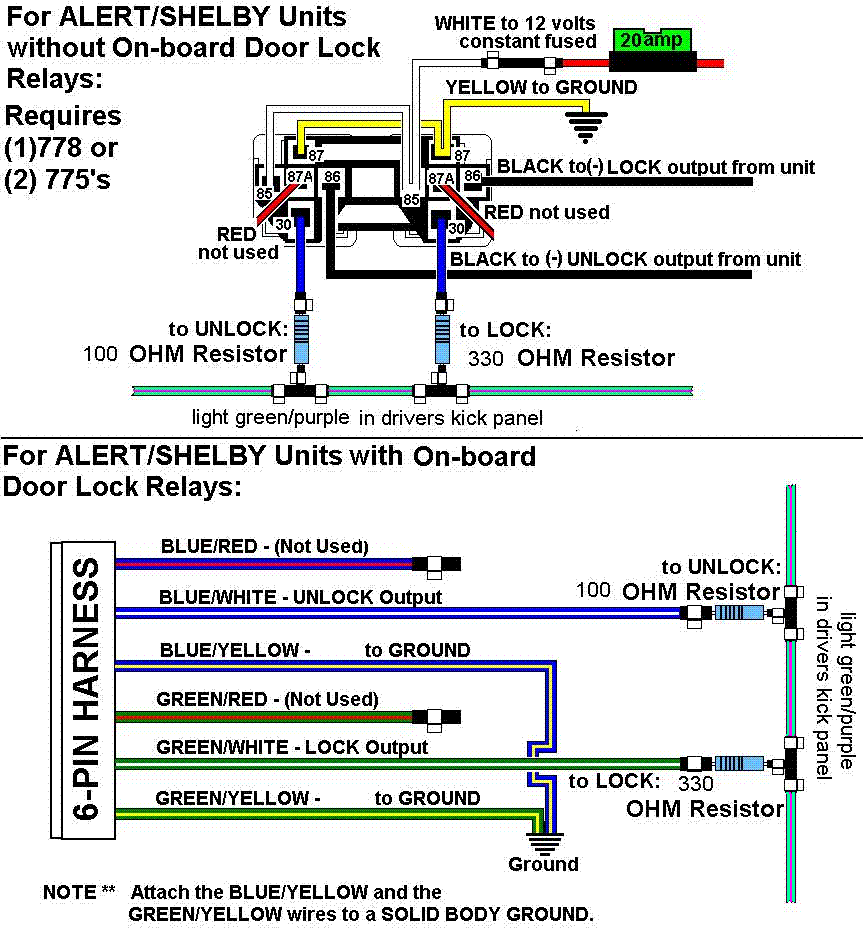

17044_SEBRING-SEDAN_ALERT AND SHELBY 1 WIRE DOORLOCKS.GIF
|
|
LOCK MOTOR WIRE
|
TAN/DARK BLUE (5-wire type)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER, (BLACK, 10-Pin Plug) Pin 9
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER, (BROWN 20-Pin Plug) Pin 3
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/WHITE (+)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER, (BROWN 20-Pin Plug) Pin 4
|
|
|
TRUNK RELEASE
|
LIGHT GREEN/WHITE (-) (Requires #775 Relay)
|
@ RELEASE SWITCH or INSTRUMENT CLUSTER, (BLACK, 20-Pin Plug) Pin 13
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK GREEN/PURPLE (-)
|
@ HORN SWITCH or INSTRUMENT CLUSTER, (BLACK, 20-Pin Plug) Pin 10
|
|
|
TACH
|
@ Any wire NOT BROWN/YELLOW (AC)
|
@ ANY FUEL INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
DARK GREEN/WHITE (+)
|
@ BRAKE SWICH or INSTRUMENT CLUSTER, (BROWN 20-Pin Plug) Pin 8
|
|
|
FACTORY ALARM DISARM
|
DISARMS WITH FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
CHRYSLER'S MUTLIPLEX IGNITION/ANTI-THEFT SYSTEM, See NOTE #1
|
|
|
