PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
@ BATTERY or TIPM, NOTE #3
|
|
|
STARTER
|
NOT USED FOR REMOTE STARTING!
|
|
|
|
STARTER 2
|
PURPLE/BROWN (-) MUX
|
@ IGNITION SWITCH, BLACK 5-PIN PLUG, PIN 2
|
|
|
IGNITION 1
|
PINK/WHITE (+)
|
@ IGNITION SWITCH (BLACK, 5-PIN PLUG) PIN 3
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
PURPLE/BROWN (-) MUX
|
@ IGNITION SWITCH, BLACK 5-PIN PLUG, PIN 2
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
WHITE/PURPLE (+)
|
in DRIVERS KICK PANEL or TIPM (BROWN PLUG) PIN 36, NOTE #3
|
|
|
POWER LOCK
|

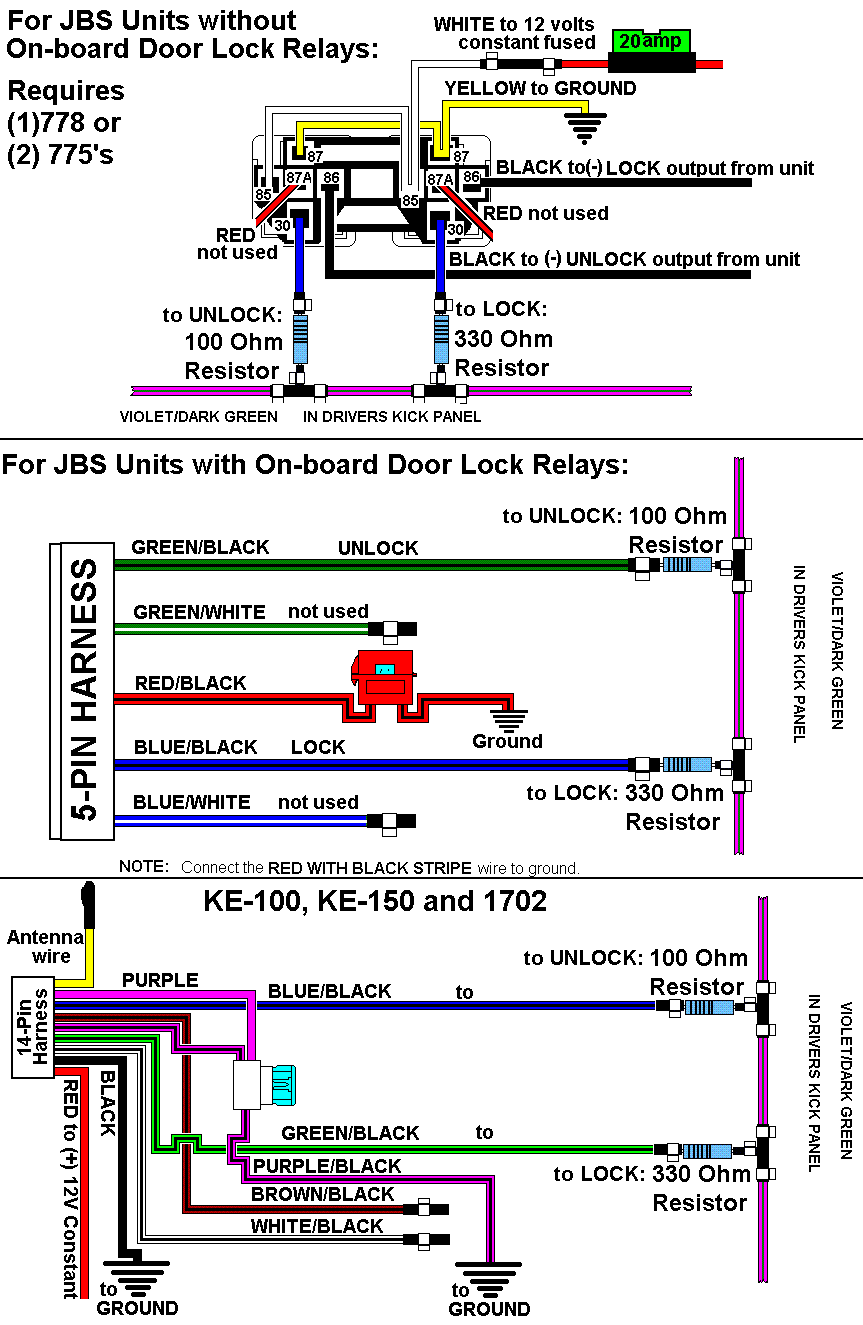

PURPLE/DARK GREEN (WITHOUT EXPRESS WINDOWS) (-) thru a 330 Ohm Resistor, SEE NOTE #2 and NOTE #4
|
IN DRIVERS KICK PANEL IN DOOR HARNESS
|
17738_LIBERTY_Liberty 1 wire jbs units.GIF
|
|
POWER UNLOCK
|
USE LOCK WIRE, (-) thru a 100 Ohm Resistor, SEE NOTE #2
|
VEHICLES WITH EXPRESS WINDOWS, PURPLE/LT.GREEN at Passenger window switch GREEN 10 PIN PLUG PIN 8 2011 and UP GRAY 8 PIN SWITCH, PIN 6
|
14301_LIBERTY_Liberty 1 wire alert units.GIF
|
|
LOCK MOTOR WIRE
|
TAN/WHITE (+) 5-wire type
|
in DRIVERS KICK PANEL or TIPM (GRAY PLUG) PIN 8, NOTE #3
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
in DRIVERS KICK PANEL or TIPM (BLACK PLUG(C7) PIN 11, NOTE #3
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/WHITE (+)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER (BLACK PLUG) PIN 7
|
|
|
TRUNK RELEASE
|
ORANGE/PURPLE (-) (GLASS)
|
in DRIVERS KICK PANEL or TIPM (BLACK PLUG(C7) PIN 5, NOTE #3
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK GREEN/PURPLE (-)
|
@ HORN SWITCH or INSTRUMENT CLUSTER (BLACK PLUG) PIN 10
|
|
|
TACH
|
Any wire NOT BROWN/WHITE (AC)
|
@ Any FUEL-INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/DK. GREEN (+) (FUNCTIONS ONLY WITH KEY ON)
|
BRAKE SWITCH OR DRIVERS KICK PANEL BLACK 43 PIN PLUG,PIN 35
|
|
|
FACTORY ALARM DISARM
|
DISARMS with FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
CHRYSLER'S MULTIPLEX IGNITION/TRANSPONDER SYSTEM, See NOTE #
|
|
|
