CHRYSLER SEBRING SEDAN
MODEL YEAR(S
SEBRING SEDAN 2004-2007
KEY T-HARNESS IMMOBILIZER
CHRKEY-1 N/A CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1
PART COLOR LOCATION DIAGRAM

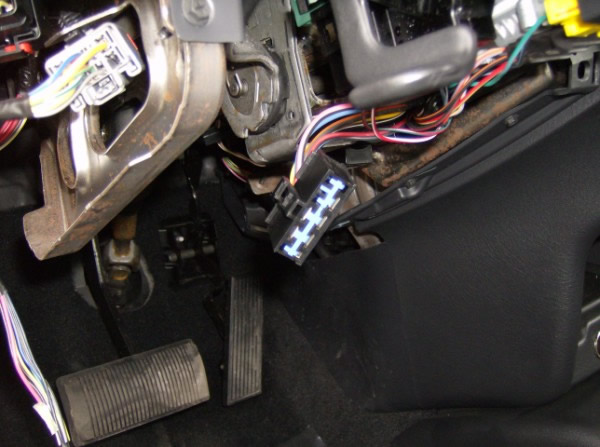

12 VOLT CONSTANT PINK/BLACK (+) and RED (+) @ IGNITION SWITCH HARNESS
STARTER YELLOW (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 BLUE (+) @ IGNITION SWITCH HARNESS
IGNITION 2 GREEN/RED (+) 20 Gauge wire @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLACK/ORANGE (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 BLACK/WHITE (+) @ IGNITION SWITCH HARNESS
KEYSENSE N/A
PARKING LIGHTS ( - ) N/A
PARKING LIGHTS ( + ) BLACK/YELLOW (+) IN DRIVERS KICK PANEL or HEADLIGHT SWITCH
POWER LOCK WHITE/GREEN (1-Wire Door Lock System), See NOTE #2 @ BCM, Connector 4, Pin 15, See DAIGRAM 17044_SEBRING-SEDAN_CHRYSLER COUPE and SEDAN 1 WIRE JBS UNITS.pdf
POWER UNLOCK Same wire, See DIAGRAM See DIAGRAMS 17044_SEBRING-SEDAN_CHRYSLER COUPE and SEDAN 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE ORANGE/BLACK (5-WIRE TYPE) @ BCM, C4, Pin 9, See NOTE #4
DOOR TRIGGER See NOTE #5 @ BCM, Connector 4, Pins 5 and 6, See NOTE #4 30844_SEBRING-SEDAN_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION YELLOW (-), (Requires #775 Relay) @ FRONT of FUSEBOX, 6-Pin Plug
TRUNK RELEASE GREEN/WHITE (5-Wire), See NOTE #6 @ BCM, Connector 4, Pin 1, See NOTE #4 14301_SEBRING-SEDAN_CHRYSLER 5-WIRE TRUNK POP DIAGRAM.pdf
SLIDING POWER DOOR N/A
HORN BLACK/RED (-) @ STEERING COLUMN HARNESS
TACH ANY wire that is NOT GREEN/LIGHT GREEN (AC) @ Any COIL or FUEL INJECTOR
WAIT TO START LIGHT N/A
BRAKE WHITE/TAN (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM LIGHT GREEN/ORANGE (+), See NOTE #3 @ BCM, Connector 4, Pin 4, See NOTE #4 26069_SEBRING-SEDAN_CHRYSLER POSITIVE DISARM DIAGRAM.pdf
ANTI-THEFT CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1 TRANSPONDER @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: If you vehicle has the ANTI-THEFT KEY, a INTERFACE BYPASS MODULE Part # DB-ALL or

XK09 that will BYPASS the ANTI-THEFT SYSTEM and it will also bypass the need for the

resistors on the door locks, to order please go to the INTERFACE BYPASS MODULE

page on this website





NOTE #2: This vehicle uses a 1-Wire Door Locking System that requires a (+)Positive thru a

2700 Ohm Resistor to LOCK and a (+)Positive thru a 620 Ohm Resistor to UNLOCK,

some units will also require 2 extra relays part #775 to connect, See DIAGRAM





NOTE #3: To DISARM requires a (+)Positive thru a 750 Ohm Resistor and an extra Relay part

#775 to connect, See DIAGRAM







NOTE #4; The BCM (Body Control Module) is located under the DRIVERS SIDE of DASH and is

attached to the FUSE/RELAY box. Connector 4 is a 26 pin plug at the bottom edge of

the BCM.





NOTE #5: this vehicle uses 4 door pin triggers, at the BCM Connector 4, the DRIVERS DOOR is a

TAN (-) Pin 5, the PASSENGERS DOOR is a TAN/RED (-) Pin 6, the DRIVERS REAR

DOOR is a TAN/ORANGE (-) Pin 7 and the PASSENGER REAR DOOR is a TAN/YELLOW,

Pin 8. When connecting to an ALARM SYSTEM, use all 4 wires and DIODE ISOLATE.

See DIAGRAM





NOTE #6: the TRUNK/HATCH Release on this vehicle is a 5-Wire System and will require an

extra Relay Part #775, to connect, See DIAGRAM.
