PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
@ BATTERY or TIPM, NOTE #3
|
|
|
STARTER
|
SEE NOTE #1
|
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
SEE NOTE #1
|
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
SEE NOTE #1
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
WHITE/BROWN (-) thru a 1.67K Ohm Resistor
|
@ HEADLIGHT SWITCH or INSTRUMENT CLUSTER (GRAY, 26-PIN PLUG) PIN 3
|
|
|
PARKING LIGHTS ( + )
|
WHITE/VIOLET (+)
|
IN PASSENGER KICK PANEL, Harness to Rear of Vehicle.
|

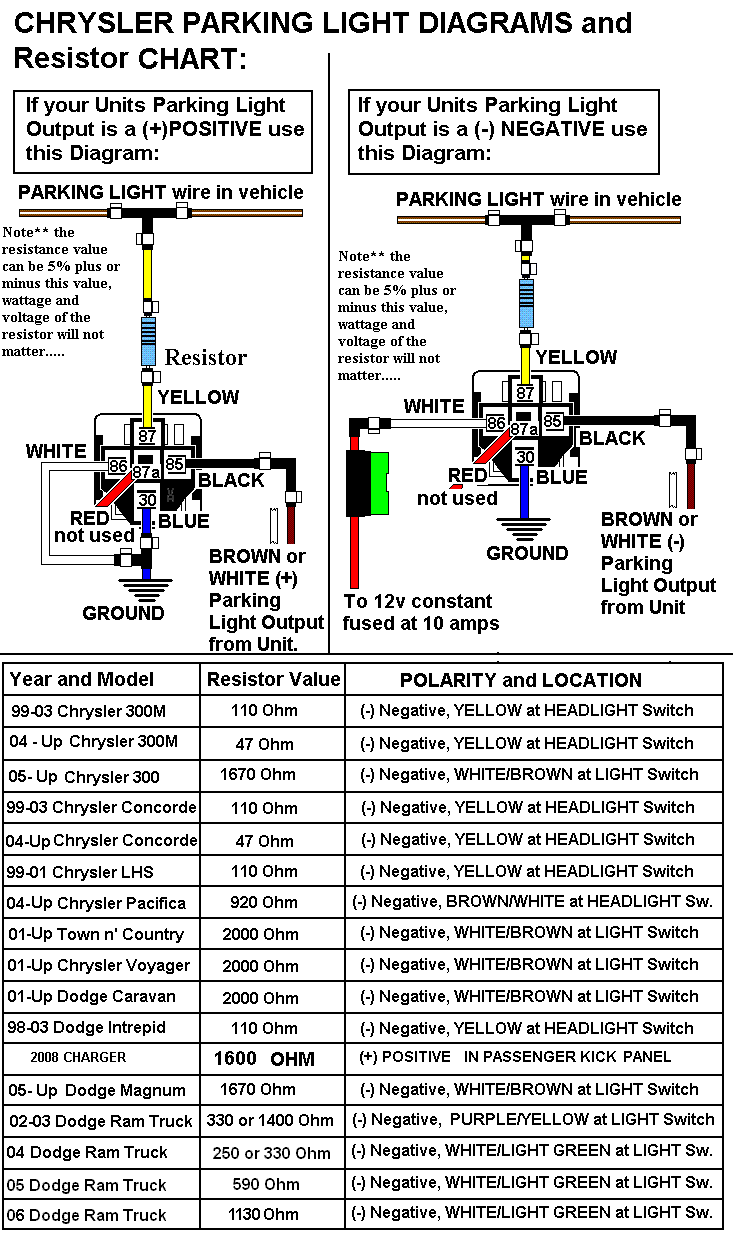

14301_CHARGER_Dodge positive park light.GIF
|
|
POWER LOCK
|
PURPLE/DK. GREEN (-) thru a 330 Ohm Resistor, SEE NOTE #2
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER (GRAY, 26-PIN PLUG) PIN 5
|

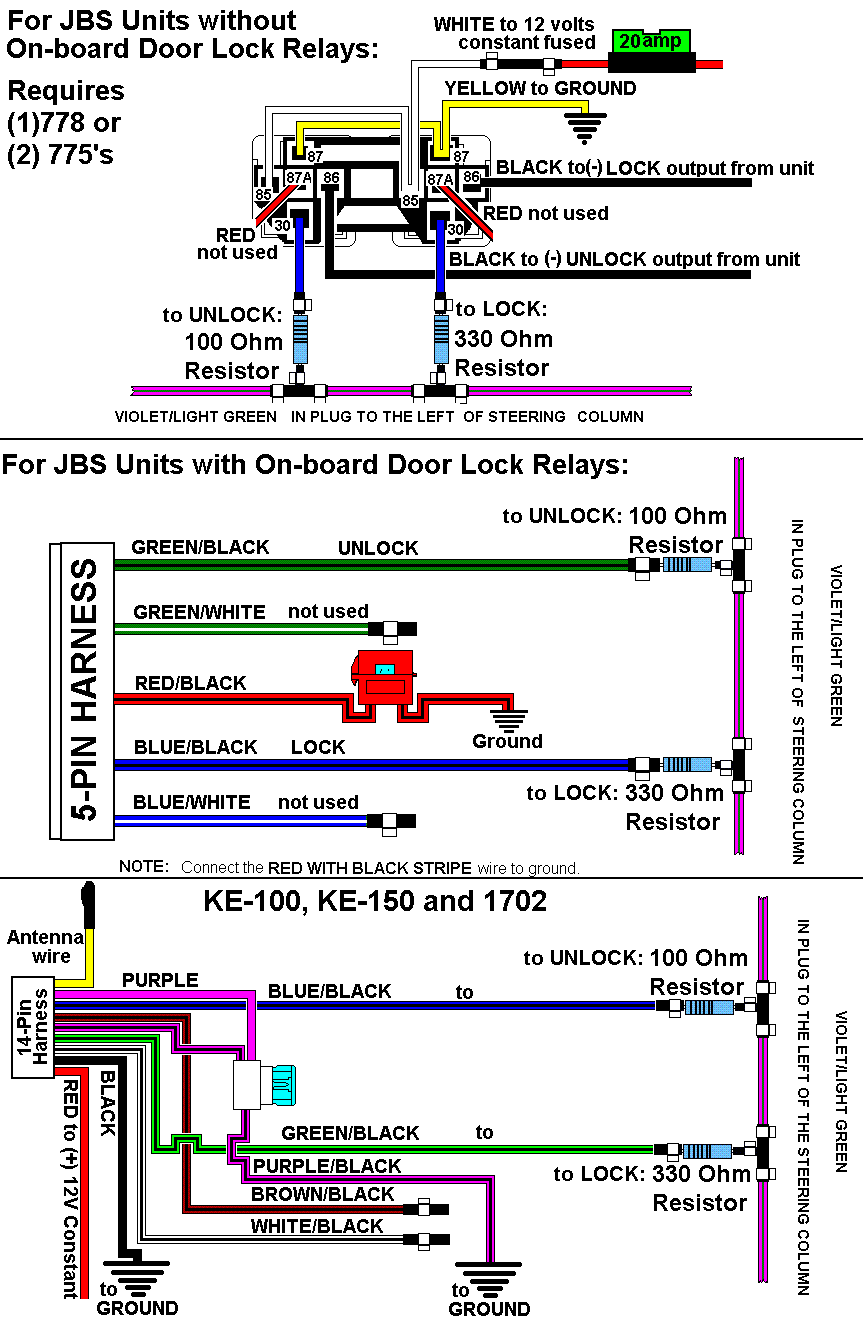

14301_CHARGER_Dodge 1 wire jbs units.GIF
|
|
POWER UNLOCK
|
Use LOCK wire, (-) thru a 100 Ohm Resistor
|
|

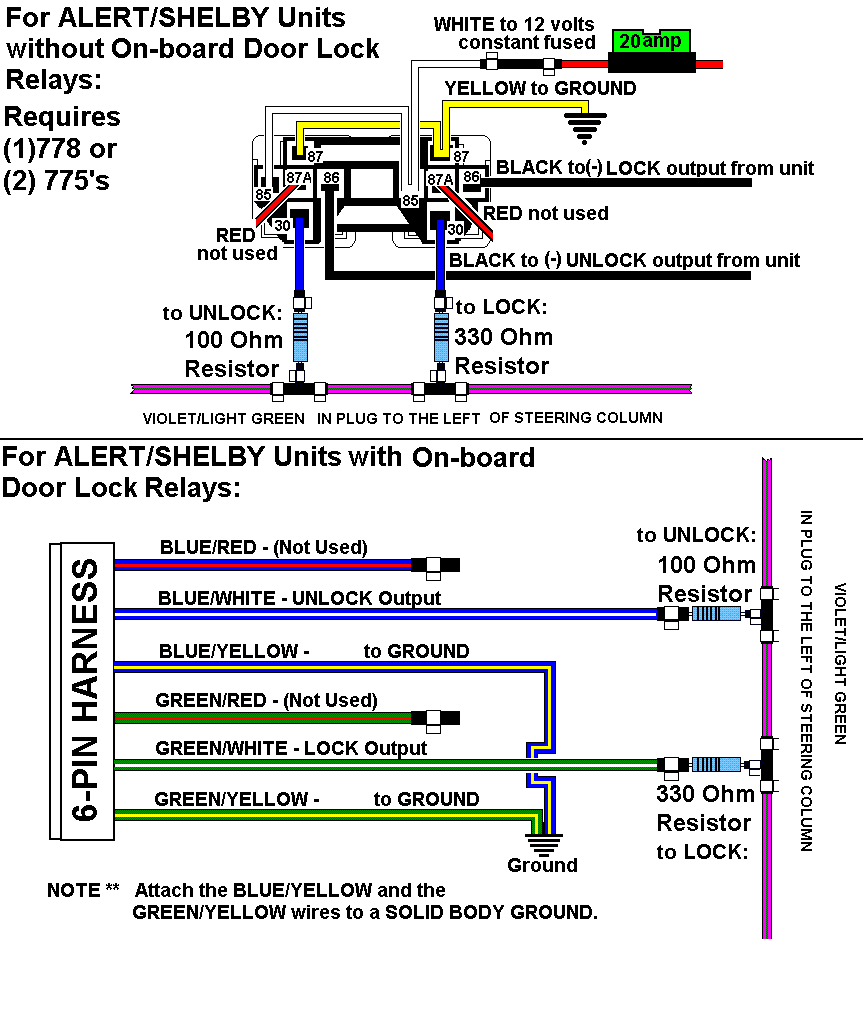

14301_CHARGER_Dodge 1 wire alert units.GIF
|
|
LOCK MOTOR WIRE
|
LT. GREEN (5-wire type)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER (GRAY, 26-PIN PLUG) PIN 12
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER (WHITE PLUG) PIN 3
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/WHITE (+)
|
@ PASSENGER A PILLAR or INSTRUMENT CLUSTER (WHITE PLUG) PIN 12
|
|
|
TRUNK RELEASE
|
PURPLE/TAN (-)
|
@ RELEASE SWITCH or INSTRUMENT CLUSTER (GRAY, 26-PIN PLUG) PIN 22
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DK. GREEN/ORANGE
|
@ HORNS or TIPM, (BLACK PLUG) PIN 3, NOTE #3
|
|
|
TACH
|
Any wire NOT BROWN/YELLOW (AC)
|
@ Any FUEL INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
DK. GREEN/WHITE (+)
|
@ BRAKE SWITCH or in PASSENGER KICK PANEL, Harness to Rear of Vehicle.
|
|
|
FACTORY ALARM DISARM
|
DISARMS with FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
CHRYSLERS MULTIPLEX IGNITION/TRANSPONDER SYSTEM, See NOTE #1
|
|
|
