DODGE RAM
MODEL YEAR(S
RAM 2004-2005
KEY T-HARNESS IMMOBILIZER
CHRKEY4 N/A CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1
PART COLOR LOCATION DIAGRAM

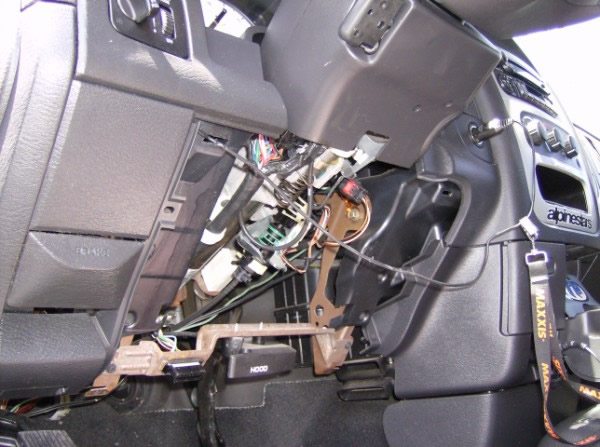

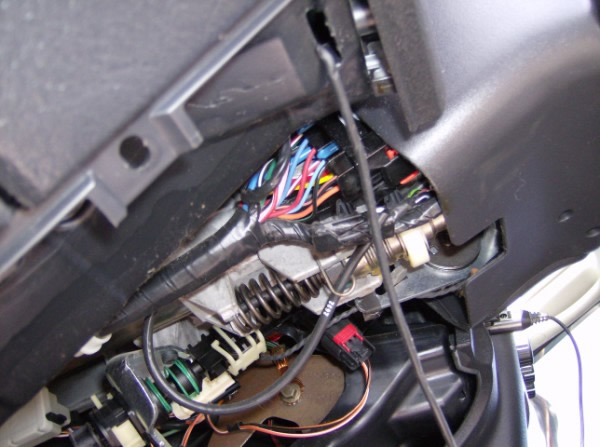

12 VOLT CONSTANT RED (+) @ IGNITION SWITCH HARNESS
STARTER YELLOW (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 PINK/WHITE (+) @ IGNITION SWITCH HARNESS
IGNITION 2 PINK/LIGHT GREEN (+) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 DARK BLUE (+) See NOTE *8 @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 N/A
KEYSENSE N/A
PARKING LIGHTS ( - ) WHITE/GREEN (-), See NOTE #2 @ HEADLIGHT SWITCH, See DIAGRAM 32277_RAM-FULL-SIZE-PICKUP-_CHRYSLER PARKING LIGHT DIAGRAM.pdf
PARKING LIGHTS ( + ) WHITE/YELLOW (+) and WHITE/GRAY (+) Use both, See NOTE #3 @ HARNESS, TOP of DRIVERS FENDER 14301_RAM-FULL-SIZE-PICKUP-_DUAL PARKING LIGHT DIAGRAM.pdf

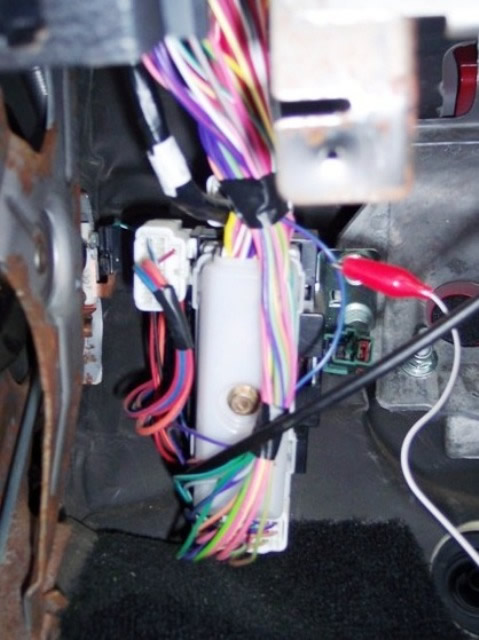

POWER LOCK PURPLE/DARK GREEN (1-Wire Door Lock System), See NOTE #4 IN DRIVERS DOOR HARNESS, See DIAGRAM 14301_RAM-FULL-SIZE-PICKUP-_DODGE RAM 04-05 1 WIRE JBS UNITS.pdf
POWER UNLOCK Same wire, See DIAGRAM 14301_RAM-FULL-SIZE-PICKUP-_DODGE RAM 04-05 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE LIGHT GREEN (+) IN DRIVERS DOOR HARNESS
DOOR TRIGGER See NOTE #5 17044_RAM-FULL-SIZE-PICKUP-_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION YELLOW/LIGHT BLUE (+) or YELLOW/ORANGE (+) @ DRIVERS A PILLAR
TRUNK RELEASE N/A
SLIDING POWER DOOR N/A
HORN DARK GREEN/PURPLE (-) @ STEERING COLUMN HARNESS
TACH DARK BLUE/GRAY (AC), See NOTE #6 @ PCM, ORANGE plug, Pin 34, See NOTE #6
WAIT TO START LIGHT See NOTE #6
BRAKE WHITE/TAN (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM PURPLE/LIGHT BLUE (-) See NOTE #7 and #8 IN DRIVERS DOOR HARNESS
ANTI-THEFT CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: This vehicle may be equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System

(GRAY IGNITION KEY), if so to remote start will require the 791 BYPASS MODULE and

an extra Ignition key, to order go to the SECURITY BYPASS MODULE PAGE on this

website.







NOTE #2; the (-)Negative PARKING LIGHTS are a (-)Negative thru a 330 Ohm Resistor on the

2004 and on the 2005 they are a (-)Negative thru a 590 Ohm Resistor, to connect,

See DIAGRAM







NOTE #3: the (+) Positive PARKING LIGHTS on this vehicle use 2 Wires, to connect will require

2 extra Relays part # 775, See DIAGRAM







NOTE #4; the Door Locks are a 1-Wire System, the LOCK requires a (-)Negative thrua 820 Ohm

Resistor and UNLOCK requires a (-)Negative thru a 330 Ohm Resistor, some units will

also require 2 extra relays part #775, to connect, See DIAGRAM





NOTE #5: the DRIVERS DOOR is a TAN (-), the DRIVERS REAR DOOR is a PURPLE/ORANGE (-),

these wires are in the DRIVERS KICK PANEL. The PASSENGE DOOR is a PURPLE/WHITE

(-) and the PASSENGER REAR DOOR is a PURPLE/YELLOW (-), these wires are in the

PASSENGER KICK PANEL. When connecting to an ALARM SYSTEM, use all 4 DOOR

TRIGGER wires and DIODE ISOLATE. to connect, See DIAGRAM





NOTE #6: the PCM (Powertrain Control Module) is located on the PASSENGER SIDE firewall, the

DIESEL tach wire is a GRAY/BLACK at the ECM (Electronic Control Module) on the lower

drivers side of the engine, 60 pin plug, pin 24. You cannot use the Wait to Start wire

on this vehicle.For the WAIT to START, use the programming in you unit for the 5, 10,

15 or 20 Second Wait to Start Timer.





NOTE #7: For the 2004 model year vehicle, to ARM/LOCK will reuire a (-)Negative thru a 2000

Ohm Resistor and to DISARM/UNLOCK requires a (-)Negative thru a 480 Ohm

Resistor. A Single Pulse thru the 480 will DISARM without Unlocking. Double Pulse to

UNLOCK. Some units will also require 2 extra Relays Part #775 to complete this

circuit, to connect, See DIAGRAM





NOTE #8: For the 2005 model year vehicle, to ARM/LOCK will require a (-)Negative thru a 644

Ohm Resistor and to DISARM/UNLOCK requires a (-)Negative thru a 1565 Ohm

Resistor. A Single Pulse thru the 1565 will DISARM without Unlocking. Double Pulse to

UNLOCK. Some units will also require 2 extra Relays Part #775 to complete this

circuit, to connect, See DIAGRAM



NOTE *8 On some Full Size Trucks with Climate Control it may be necessary to connect (3) extra Accessory wires. PINK/YELLOW 16 gauge & PINK/YELLOW 14 gauge and the DARK BLUE Accessory #1 to turn on the A/C Compressor.
