SUZUKI XL-7

MODEL	YEAR(S
XL-7	2003-2006

KEY	T-HARNESS	IMMOBILIZER
N/A	N/A	N/A

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	WHITE/GREEN (+)	IGNITION SWITCH HARNESS
STARTER	BLACK/RED (+)	IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	BLACK/BLUE (+)	IGNITION SWITCH HARNESS
IGNITION 2	N/A
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	YELLOW/BLACK (+)	IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A
PARKING LIGHTS ( - )	RED/BLUE with 2 SILVER dots (-) (Thin Gauge wire)	@ BCM, 22 Pin Plug, Pin 9 or in the BLACK harness coming down the STEERING COLUMN See NOTE *1
PARKING LIGHTS ( + )	RED/YELLOW (+)	@ BCM, 22 Pin Plug, Pin 22, See NOTE *1
POWER LOCK	PINK/BLACK (TYPE B)	@ BCM, 12 Pin Plug, Pin 1 or WHITE Plug, HIGH in Drivers kick panel, See NOTE *1
POWER UNLOCK	PINK/GREEN (TYPE B)	@ BCM, 12 Pin Plug, Pin 7or WHITE Plug HIGH in Drivers kick panel, See NOTE *1
LOCK MOTOR WIRE	BLUE (+)	@ BCM, 22 Pin Plug, Pin 12, See NOTE *1
DOOR TRIGGER	BLACK/RED (-)	@ BCM, 16 Pin Plug, Pin 16, See NOTE *1
DOMELIGHT SUPERVISION	USE DOOR TRIGGER
TRUNK RELEASE	N/A
SLIDING POWER DOOR	N/A
HORN	BLUE/GREEN (-)	@ BCM, 22 Pin Plug, Pin 4, See NOTE *1
TACH	BROWN	@ ECM, 35 Pin Plug, Pin 6, See NOTE *2
WAIT TO START LIGHT	N/A
BRAKE	GREEN/WHITE (+)	@ SWITCH ABOVE BRAKE PEDAL, BLUE Plug
FACTORY ALARM DISARM	PINK/BLUE (-)	@ BCM, 12 Pin Plug, Pin 8, See NOTE *1
ANTI-THEFT	N/A

NOTES

NOTE *1 the BCM (Body Control Module) is located BELOW the RADIO. The BCM is very hard to get to. If a all possible catch the wires where it is stated before going to the BCM. NOTE *2 the ECM (Engine Control Module) is located BEHIND the GLOVEBOX.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

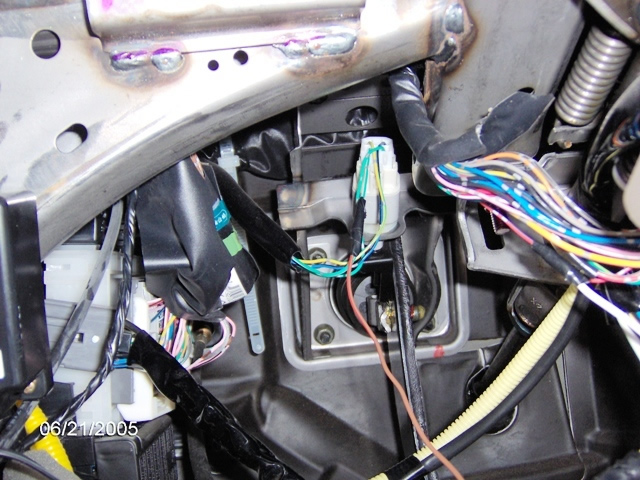

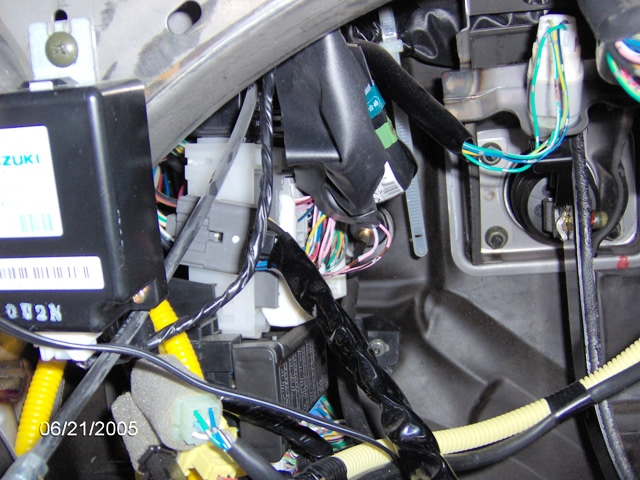

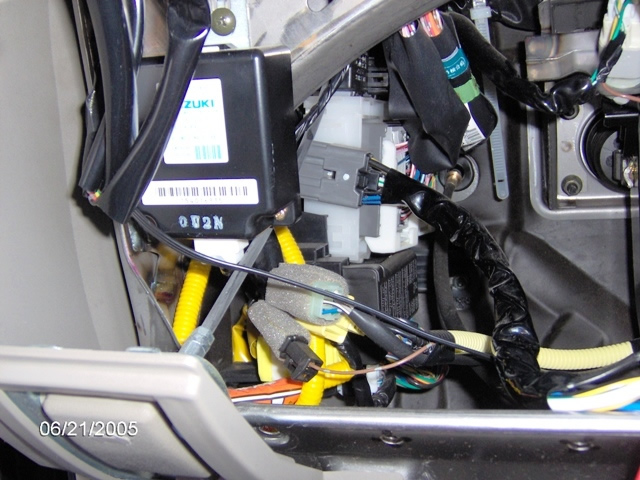

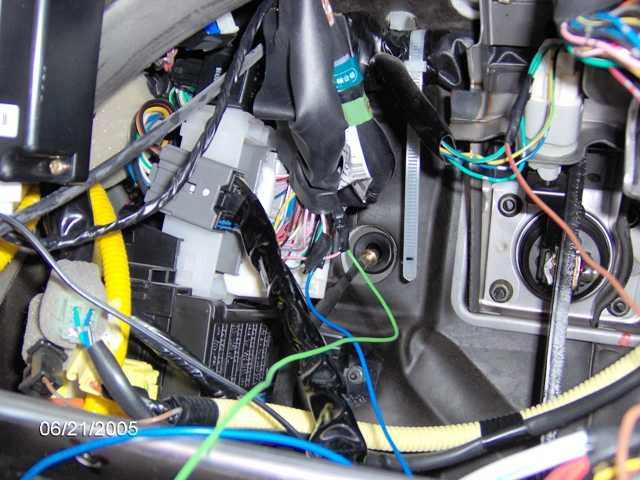

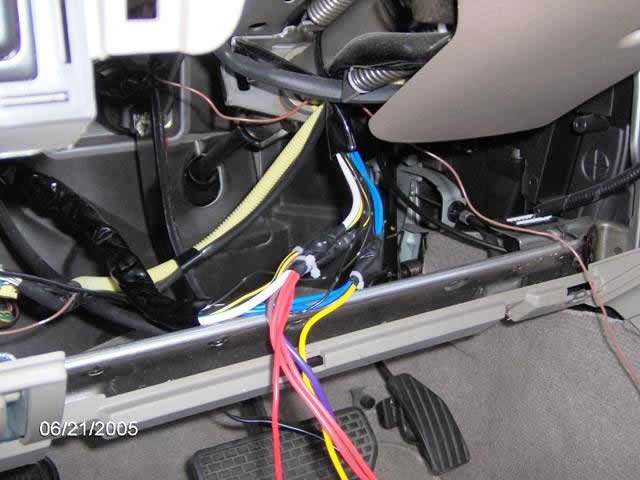

Show Large Image This picture shows the BRAKE SWITCH location and connection. The Switch is located above the BRAKE Pedel, the Brake wire is in the WHITE Plug. Show Large Image This is a picture of the connections to the IGNITION SWITCH harness where it exits the Steering Column of this vehicle. Show Large Image This picture shows the IGNITION SWITCH Harness Plug (GRAY Plug with LARGE wires and SHINNY BLACK covering over wires in this picture) where it plugs into the FUSEBOX of this vehicle. The connections to the IGNITION SWITCH HARNESS can also be made at this Show Large Image This picture show the location and the connection to the (-) PARKING LIGHT wire in the Steering Column harness exiting the lower half of the Steering Column. This wire is easier to get to than the (+) Parking Light wire at the BCM. Show Large Image This picture shows the LOCK and UNLOCK wires in the LARGE WHITE Plug. Both the LOCK and UNLOCK wires are stripped back and ready to be connected to. It was much easier to find these wires here that to get to the BCM to locate these wires. Show Large Image This picture shows the LOCK and UNLOCK wires in the LARGE WHITE Plug. Both the LOCK and UNLOCK wires are connected to in this picture. It was much easier to find and connect to these wires here, than to get to the BCM.
