PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
WHITE (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER
|
WHITE/BLACK (+)
|
IGNITION SWITCH HARNESS
|
|
|
STARTER 2
|
N/A
|
N/A
|
|
|
IGNITION 1
|
GREEN (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 2
|
BLUE (+)
|
IGNITION SWITCH HARNESS
|
|
|
IGNITION 3
|
N/A
|
N/A
|
|
|
ACCESSORY/HEATER BLOWER 1
|
YELLOW (+)
|
IGNITION SWITCH HARNESS
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
N/A
|
|
|
KEYSENSE
|
RED (+)
|
IGNITION SWITCH HARNESS
|
|
|
PARKING LIGHTS ( - )
|
BLACK/YELLOW (-) REQUIRES #775
|
AT COMBINATION LIGHTING SWITCH
|
|
|
PARKING LIGHTS ( + )
|
ORANGE (+)
|
AT PARK LIGHT SWITCH
|
|
|
POWER LOCK
|
BROWN/WHITE (-)TYPE B
|
IN DRIVERS KICK PANEL
|
|
|
POWER UNLOCK
|
BROWN/BLACK(-)TYPE B
|
IN DRIVERS KICK PANEL
|
|
|
LOCK MOTOR WIRE
|
N/A
|
N/A
|
|
|
DOOR TRIGGER
|
BLUE/WHITE (-)
|
IN DRIVERS KICK PANEL
|
|
|
DOMELIGHT SUPERVISION
|
BROWN (-) (REQUIRES #775 RELAY)
|
AT BODY INTEGRATED MODULE LOCATED TO THE RIGHT OF THE STEERING COLUMN
|
|
|

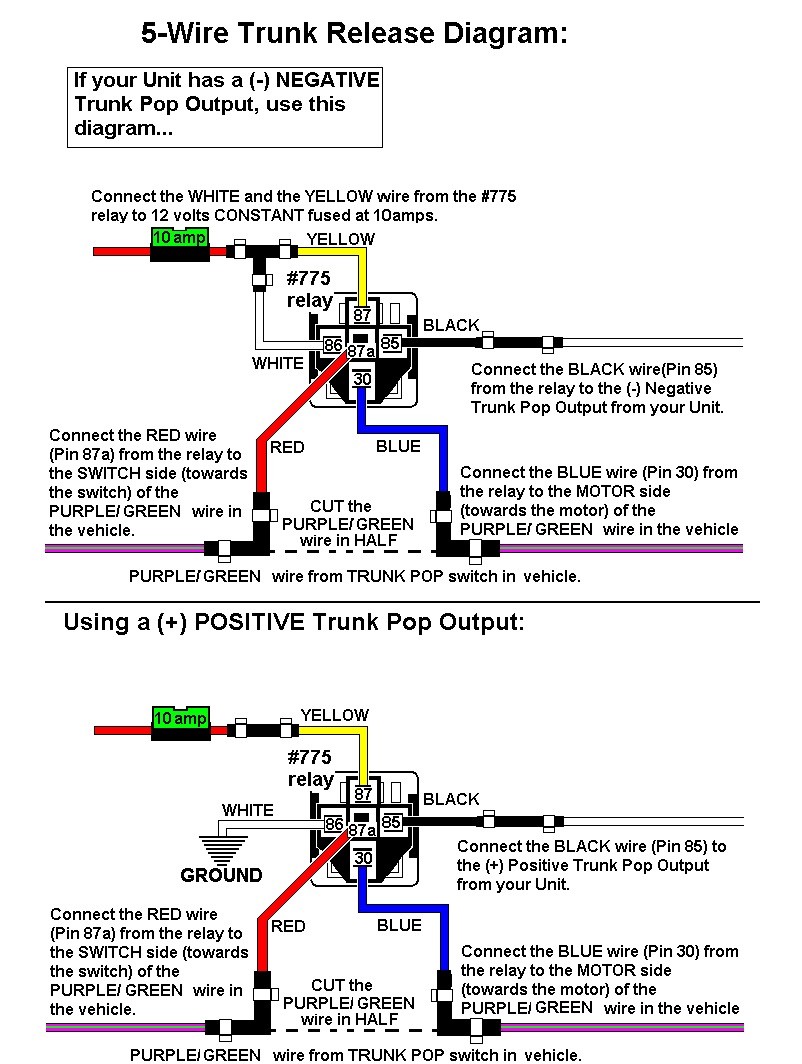

TRUNK RELEASE
|
PURPLE/GREEN TYPE C
|
SEE DIAGRAM
|
14301_B9-TRIBECA_5 WIRE TRUNK POP.GIF
|
|
SLIDING POWER DOOR
|
N/A
|
N/A
|
|
|
HORN
|
RED TO RED/WHITE (-)
|
AT IGNITION HARNESS
|
|
|
TACH
|
N/A
|
N/A
|
|
|
WAIT TO START LIGHT
|
N/A
|
N/A
|
|
|
BRAKE
|
BROWN/WHITE (+)
|
AT SWITCH ABOVE BRAKE PEDAL
|
|
|
FACTORY ALARM DISARM
|
N/A
|
N/A
|
|
|
ANTI-THEFT
|
TRANSPONDER ANTI-THEFT
|
TRANSPONDER @ IGNITION SWITCH TUMBLER
|
|
