DODGE INTREPID

MODEL	YEAR(S
INTREPID	1998-2003

KEY	T-HARNESS	IMMOBILIZER
CHRKEY1	N/A	CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	PINK/BLACK (+) and RED (+)	@ IGNITION SWITCH HARNESS
STARTER	YELLOW (+)	@ IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	DARK BLUE/WHITE (+)	@ IGNITION SWITCH HARNESS
IGNITION 2	DARK GREEN/RED (+)	@ IGNITION SWITCH HARNESS
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	BLACK/ORANGE (+)	@ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	BLACK/WHITE (+)	@ IGNITION SWITCH HARNESS
KEYSENSE	N/A
PARKING LIGHTS ( - )	YELLOW (-), See NOTE #2	@ HEADLIGHT SWITCH, See DIAGRAM	32277_INTREPID_CHRYSLER PARKING LIGHT DIAGRAM.pdf
PARKING LIGHTS ( + )	N/A
POWER LOCK	WHITE/GREEN (1-Wire Door Lock System), See NOTE #3	@ BACK of FUSE PANEL, See DAIGRAM	14301_INTREPID_CHRYSLER COUPE and SEDAN 1 WIRE JBS UNITS.pdf
POWER UNLOCK	Same wire, See DIAGRAM	See DIAGRAMS	14301_INTREPID_CHRYSLER COUPE and SEDAN 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE	ORANGE (5-WIRE TYPE)	@ BCM, See NOTE #5
DOOR TRIGGER	TAN (-) and TAN/RED (-) Use both, See NOTE #4	@ BCM, See NOTE #5	1794_INTREPID_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION	YELLOW (-), (Requires #775 Relay)	@ FRONT of FUSEBOX, WHITE 3-Pin Plug
TRUNK RELEASE	BLACK/WHITE (+)	@ TRUNK RELEASE SWITCH
SLIDING POWER DOOR	N/A
HORN	BLACK/RED (-)	@ STEERING COLUMN HARNESS
TACH	ANY TAN STRIPE wire (AC)	@ COIL PACK
WAIT TO START LIGHT	N/A

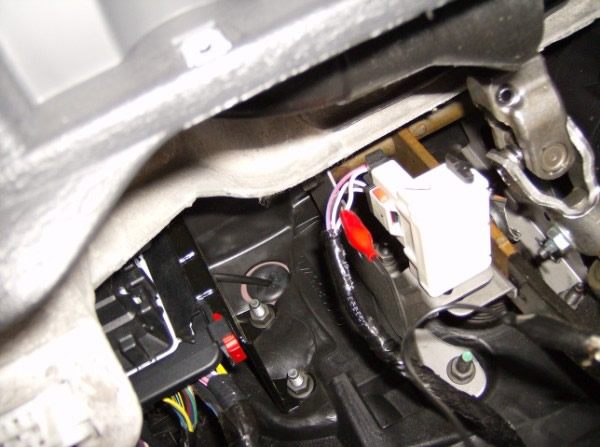

BRAKE	WHITE/TAN (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	LIGHT GREEN/ORANGE (-), See NOTE #6	IN DRIVERS DOOR HARNESS	14301_INTREPID_CHRYSLER POSITIVE DISARM DIAGRAM.pdf
ANTI-THEFT	CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), See NOTE #1	@ IGNITION SWITCH TUMBLER

NOTES

NOTE #1: This vehicle may be equipped with CHRYSLER'S ANTI-THEFT TRANSPONDER System (GRAY IGNITION KEY), if so to remote start will require the 791 BYPASS MODULE and an extra Ignition key, to order go to the SECURITY BYPASS MODULE PAGE on this website. NOTE #2: the PARKING LIGHTS require a (-)Negative thru a 110 Ohm Resistor and an extra Relay Part #775, to connect, See DIAGRAM. NOTE #3: this vehicle uses a 1-Wire Door Locking System, LOCK requires a (+)Positive thru a 2700 Ohm Resistor and UNLOCK requires a (+)Positive thru a 620 Ohm Resistor, some units will also require 2 extra relays part #775, to connect, See DIAGRAM NOTE #4: when connecting to an ALARM SYSTEM, use BOTH DOOR TRIGGER wires and DIODE ISOLATE, to connect, See DIAGRAM NOTE #5: the BCM (Body Control Module) is located on the DRIVERS SIDE of the DASH attached to the FUSE/JUNCTION block. NOTE #6; this FACTORY DISARM wire will require extra parts: the 1998 ONLY, will require the relay Part #775 and not a resistor. On 1999 and up, they will require a relay Part #775 and a (-)Negative thru a 680 Ohm Resistor, to connect, See DIAGRAM

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

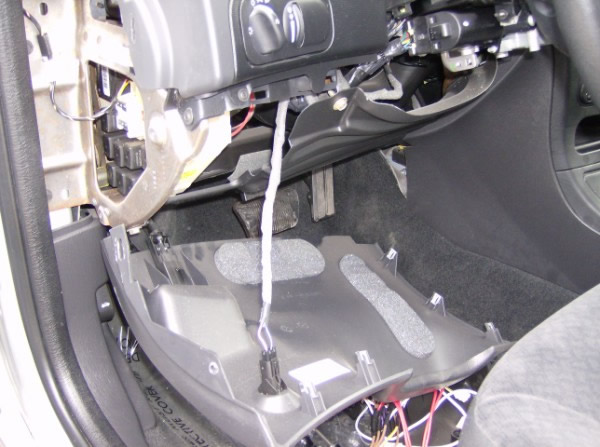

Show Large Image This picture shows the Under DAsh Panel Lowered to gain access to under dash wiring. Show Large Image to gain access to the IGNITION SWITCH HARNESS Plug you will need to remove the Tilt Wheel Lever and the Lower Steering Column Cover. Show Large Image The Tilt Wheel Lever is held in place by a screw that can be removed from the back of this lever. Show Large Image This picture show the Side Dash Panel and Lower Dash panel that must be removed to gain access to the under dash wiring on this vehicle. Show Large Image To gain access to the under dash wiring this lower panel must be remoted, you will also note the Truck Release Button on this panel in the picture. Show Large Image To remove the Under Dash Panel you will first need to remove this side panel and then remove the (2) screws that hold the edge of the under dash panel in place. Show Large Image The IGNITION SWITCH HARNESS is seen in this picture plugged into the Ignition Switch Harness Plug on the LOWER LEFTHAND SIDE of the Steering Column. The Steering Columns Lower cover must be removed to gain access to the Ignition Switch Harness and Plug. Show Large Image In this picture the FACTORY IGNITION SWITCH HARNESS is UNPLUGGED from the Ignition Switch on the Steering Column. This Harness needs only to be Unplugged if you are Installing a CHR-4 T-HARNESS when installing a Remote Starter. Show Large Image This picture shows the CHR-4 T-HARNESS Plugged into the Under Dash Side of the FACTORY IGNITION SWITCH Harness from the vehicle. Show Large Image This picture shows the CHR-4 T-HARNESS installed between the Factory Ignition Switch Harness and the Ignition Switch of this vehicle. Show Large Image The BLACK/WHITE (+) TRUNK RELEASE wire is located at the Truck Release Switch on the back of the Under Dash Panel and is marked with a RED Clip in this picture. Show Large Image The WHITE/TAN (+) BRAKE wire is located at the Brake Switch above the Brake Pedal in this vehicle, the Brake wire is marked with the RED Clip in this picture.
