PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
RED (+)
|
@ BATTERY
|
|
|
STARTER
|
SEE NOTE #1
|
|
|
|
STARTER 2
|
N/A
|
|
|
|
IGNITION 1
|
PINK/WHITE (+)
|
@ WIRELESS IGNITION NODE,(12-PIN PLUG) PIN 3, NOTE #4
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
PINK/LIGHT BLUE (+)
|
@ WIRELESS IGNITION NODE,(12-PIN PLUG) PIN 9, NOTE #4
|
|
|
PARKING LIGHTS ( - )
|
N/A
|
|
|
|
PARKING LIGHTS ( + )
|
WHITE/PURPLE (+)
|
in PASSENGER KICK PANEL or TIPM (BROWN PLUG) PIN 36, NOTE #3
|
|
|
POWER LOCK
|
PURPLE/DARK GREEN (-) thru a 330 Ohm Resistor , NOTE #2 and NOTE #5
|
in DRIVERS KICK PANEL or TIPM (BLACK PLUG(C7) PIN 36, NOTE #3
|
14301_JOURNEY_CHRYSLER,DODGE 1 WIRE JBS UNITS.GIF
|
|
POWER UNLOCK
|
USE LOCK WIRE (-) thru a 100 Ohm Resistor, SEE NOTE #2
|
|

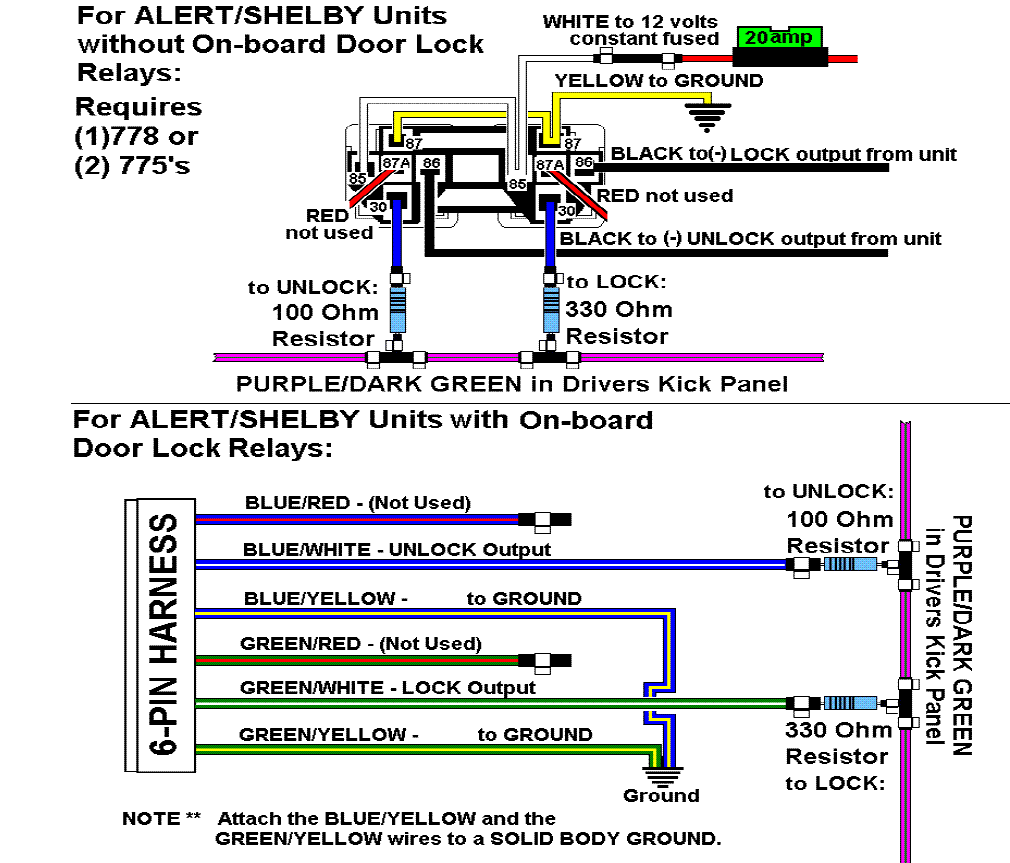

14301_JOURNEY_CHRYSLER ,DODGE 1 WIRE ALERT UNITS.GIF
|
|
LOCK MOTOR WIRE
|
TAN/WHITE (+) 5-wire type
|
in DRIVERS KICK PANEL or TIPM (GRAY PLUG) PIN 8, NOTE #3
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
in DRIVERS KICK PANEL or TIPM (BLACK PLUG(C7) PIN 11, NOTE #3
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/WHITE (+)
|
in DRIVERS A Pillar or INSTRUMENT CLUSTER (BLACK PLUG) PIN 8, NOTE #3
|
|
|
TRUNK RELEASE
|
N/A
|
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DARK GREEN/ORANGE (5-WIRE TYPE)
|
@ HORNS or TIPM (GREEN PLUG) PIN 24, NOTE #3
|
|
|
TACH
|
Any wire NOT BROWN/GRAY or BROWN/WHITE (AC)
|
@ Any FUEL-INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/DARK GREEN (+)
|
in DRIVERS KICK PANEL or TIPM (BLACK PLUG(C7) PIN 10, NOTE #3
|
|
|
FACTORY ALARM DISARM
|
DISARMS WITH FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
CHRYSLERS MULITPLEX IGNITION/ANTI-THEFT SYSTEM, SEE NOTE #1
|
|
|
