PART
|
COLOR
|
LOCATION
|
DIAGRAM
|
|
12 VOLT CONSTANT
|
ORANGE/DK. BLUE(+) 60AMP, RED/PINK or RED/BLACK(+) 40AMP
|
@ FUSE BOX, (GRAY PLUG) PINS 39 and 2
|
|
|
STARTER
|
SEE NOTE #1
|
|
|
|
STARTER 2
|
SEE NOTE #1
|
|
|
|
IGNITION 1
|
PINK/GRAY (+)
|
@ IGNITION SWITCH, (6-PIN PLUG) PIN 3
|
|
|
IGNITION 2
|
N/A
|
|
|
|
IGNITION 3
|
N/A
|
|
|
|
ACCESSORY/HEATER BLOWER 1
|
SEE NOTE #1
|
|
|
|
ACCESSORY/HEATER BLOWER 2
|
N/A
|
|
|
|
KEYSENSE
|
N/A
|
|
|
|
PARKING LIGHTS ( - )
|
PINK/RED (-) thru a 1.13K Ohm Resistor
|
@ HEADLIGHT SWITCH or INSTRUMENT CLUSTER, (GRAY, 16-PIN PLUG) PIN 5
|
|
|
PARKING LIGHTS ( + )
|
PINK/RED(+) (Left0 and WHITE/ORANGE(+) (Right)
|
@ FUSE BOX, (BLACK PLUG) PINS 6 and 5
|
|
|
POWER LOCK
|
LT. BLUE/ORANGE (-) thru a 330 Ohm Resistor SEE NOTE #2
|
@ LOCK SWITCH or DDM, 20-PIN PUG) PIN 16, NOTE #4 SEE DIAGRAM
|

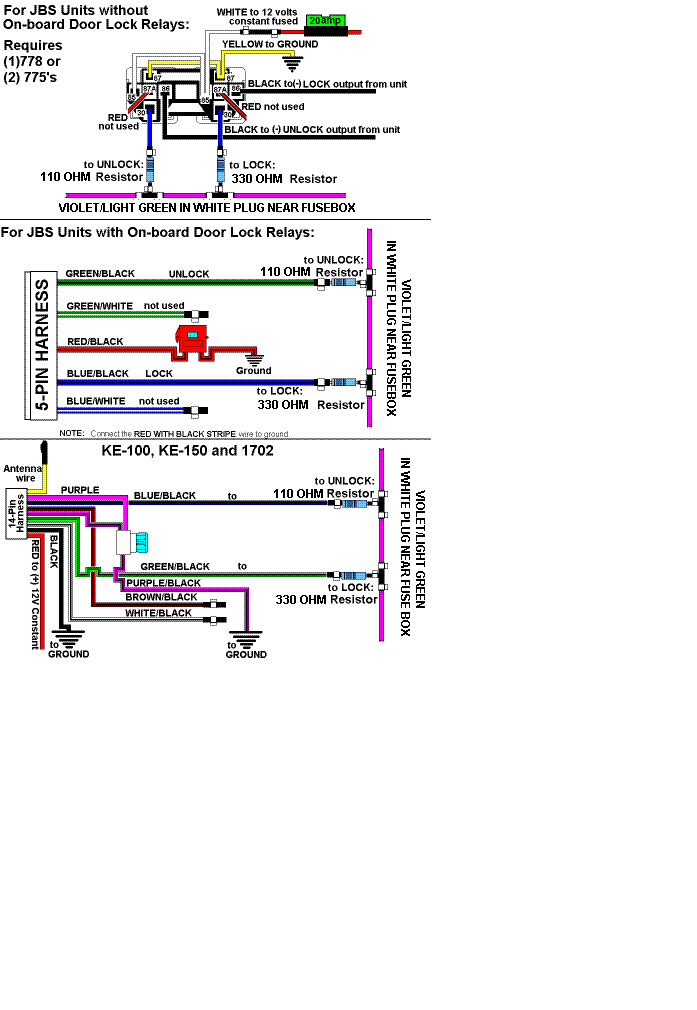

14301_DURANGO_DODGE DURANGO JBS 1 WIRE DOORLOCKS.GIF
|
|
POWER UNLOCK
|
USE LOCK WIRE (-) thru a 100 Ohm Resistor, SEE NOTE #2
|
SEE DIAGRAM
|

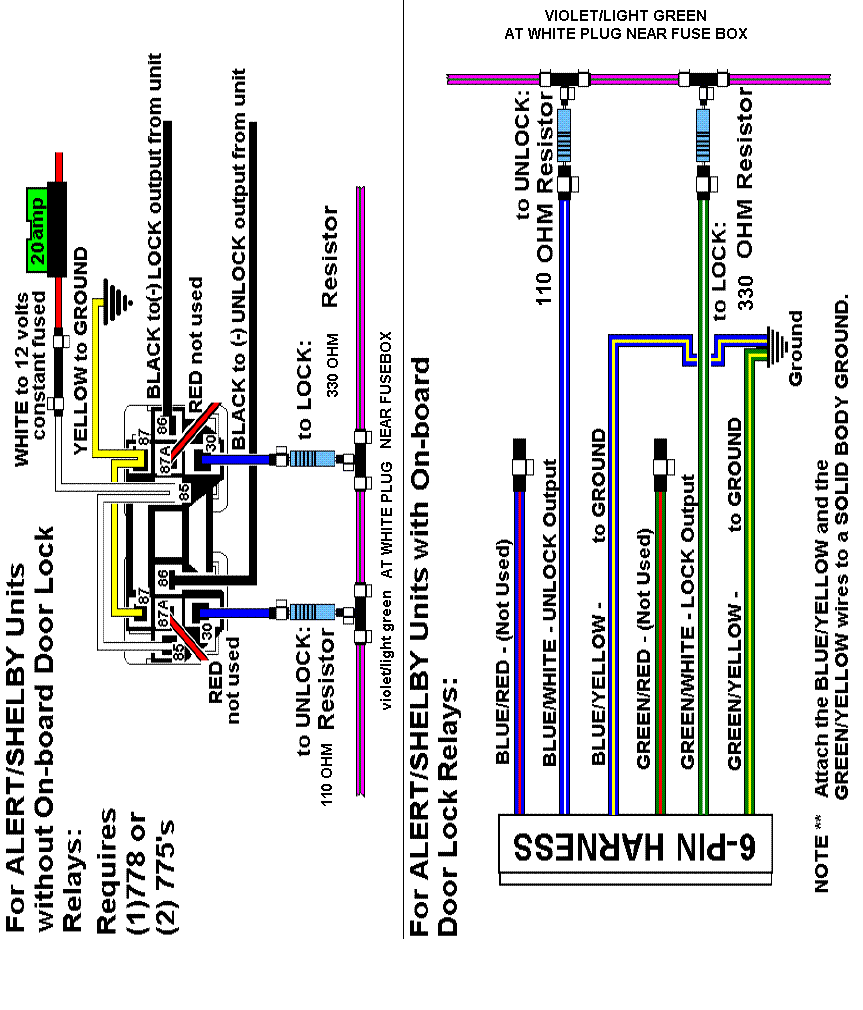

14301_DURANGO_DURANGO 1 WIRE DOORLOCKS.GIF
|
|
LOCK MOTOR WIRE
|
LT. GREEN (5-wire type)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER(GRAY 26-PIN PLUG) PIN 15
|
|
|
DOOR TRIGGER
|
PURPLE (-)
|
@ DDM, 20-PIN PUG) PIN 5, NOTE#3
|
|
|
DOMELIGHT SUPERVISION
|
YELLOW/ORANGE (+)
|
in DRIVERS KICK PANEL or INSTRUMENT CLUSTER(WHITE PLUG) PIN 11 or 2
|
|
|
TRUNK RELEASE
|
PURPLE/TAN (Power Liftgate) (-) thru a 4.7K Ohm Resistor
|
@ RELEASE SWITCH or PLM (22-PIN PLUG) PIN 14, NOTE #5
|
|
|
SLIDING POWER DOOR
|
N/A
|
|
|
|
HORN
|
DK. GREEN/PURPLE (-)
|
@ HORN SWITCH or INSTRUMENT CLUSTER(GRAY, 26-PIN PLUG) PIN 10
|
|
|
TACH
|
Any wire NOT RED (AC)
|
@ Any FUEL-INJECTOR
|
|
|
WAIT TO START LIGHT
|
N/A
|
|
|
|
BRAKE
|
WHITE/TAN (+) or WHITE/LT. BLUE (+)
|
@ BRAKE SWITCH or FUSE BOX, (BLACK PLUG) PIN 19
|
|
|
FACTORY ALARM DISARM
|
DISARMS WITH FACTORY REMOTE ONLY!!
|
|
|
|
ANTI-THEFT
|
CHRYSLERS MULTIPLEX IGNITION/ANTI-THEFT SYSTEM, SEE NOTE #1
|
|
|
