HONDA CIVIC
MODEL YEAR(S
CIVIC 2004-2005
KEY T-HARNESS IMMOBILIZER
N/A HON-4 HONDA'S TRANSPONDER ANTI-THEFT SYSTEM, SEE NOTE #1
PART COLOR LOCATION DIAGRAM

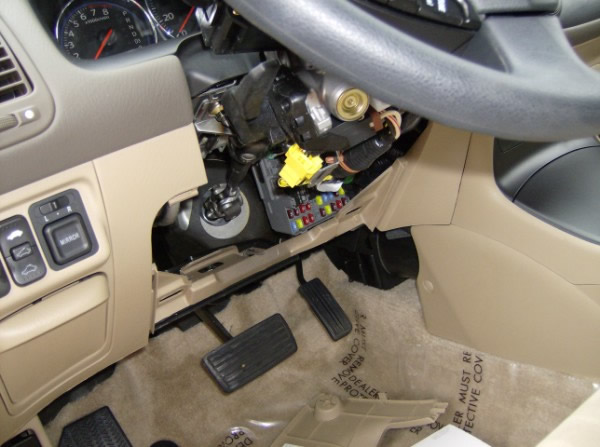

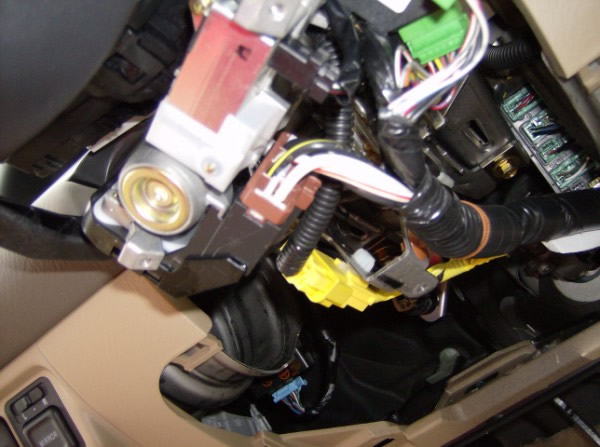

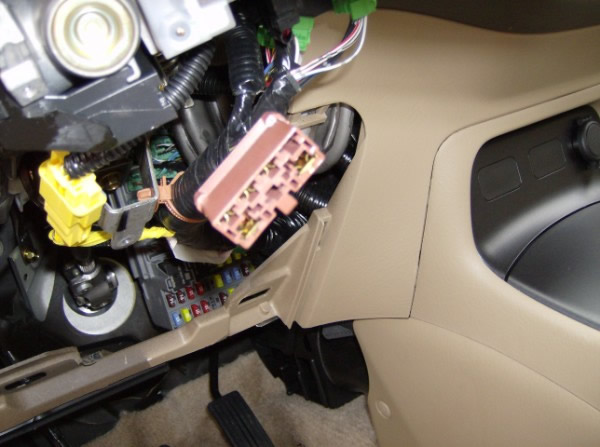

12 VOLT CONSTANT WHITE (+) @ IGNITION SWITCH HARNESS
STARTER BLACK/WHITE (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 BLACK/YELLOW (+) @ IGNITION SWITCH HARNESS
IGNITION 2 N/A
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 BLACK/RED (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 WHITE/RED (+) @ IGNITION SWITCH HARNESS
KEYSENSE N/A
PARKING LIGHTS ( - ) BLUE (-) @ HEADLIGHT SWITCH UNDER STEERING COLUMN COVER
PARKING LIGHTS ( + ) RED/BLACK (+) @ BACK OF FUSEBOX, TOP MIDDLE PLUG
POWER LOCK WHITE/BLUE (TYPE B) IN DRIVERS KICK PANEL
POWER UNLOCK WHITE/GREEN (TYPE B) IN DRIVERS KICK PANEL
LOCK MOTOR WIRE YELLOW/BLACK (5-WIRE TYPE) IN DRIVERS KICK PANEL
DOOR TRIGGER See NOTE #2 @ FACTORY ALARM PLUG, See NOTE #4 25152_CIVIC_(-) NEGATIVE DOOR PIN ISOLATION CIRCUIT.pdf
DOMELIGHT SUPERVISION USE DOOR TRIGGER, (Requires Part #775 Relay)
TRUNK RELEASE N/A
SLIDING POWER DOOR N/A
HORN ORANGE (-) @ STEERING COLUMN HARNESS
TACH BLUE (AC) @ TACH TEST CONNECTOR, See NOTE #3
WAIT TO START LIGHT N/A
BRAKE WHITE/BLACK (+) @ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM DISARMS with FACTORY REMOTE ONLY
ANTI-THEFT TRANSPONDER ANTI-THEFT SYSTEM, SEE NOTE #1 @ IGNITION SWITCH TUMBLER
NOTES
NOTE #1: May be equipped with HONDA'S TRANSPONDER ANTI-THEFT SYSTEM, to remote start

will require a part # 791 Bypass Module and an extra ignition key OR Part # PKALL

Transponder bypass module (no key required) to order go to the INTERFACE BYPASS

MODULE page on this website.





NOTE #2: THE DRIVERS DOOR TRIGGER IS GREEN (-),THE FRONT PASSENGER DOOR TRIGGER IS

LIGHT GREEN/RED (-),AND THE REAR DOOR TRIGGERS ARE GREEN/WHITE (-).WHEN

CONNECTING TO AN ALARM SYSTEM. USE ALL 3 DOOR TRIGGER WIRES AND DIODE

ISOLATE, TO CONNECT, See DIAGRAM





NOTE #3: THE TACH TEST CONNECTOR IS A 2 PIN CONNECTOR TO THE PASSENGER SIDE OF

THE BATTERY.







NOTE #4: THE FACTORY ALARM PLUG IS LOCATED ABOVE THE DRIVERS KICK PANEL IN A

GREEN PLUG.







NOTE #4: HONDA'S TRANSPONDER SYSTEM, Requires Bypass Module:

(For Remote Starting Only) Part #791 Bypass, (Requires Extra Key) for Operation.

(For Remote Starting Only) Part # PK-ALL Bypass. (No Extra Key Required for

Operation) 2-KEYS Required to Program Module.

(For Remote Starting/Door Locks) Part # DB-ALL (No Extra Key Required for Operation)

1-KEY Required for Programming.

To order please go to the SECURITY BYPASS MODULE Page or INTERFACE BYPASS

MODULE Page on this website.
