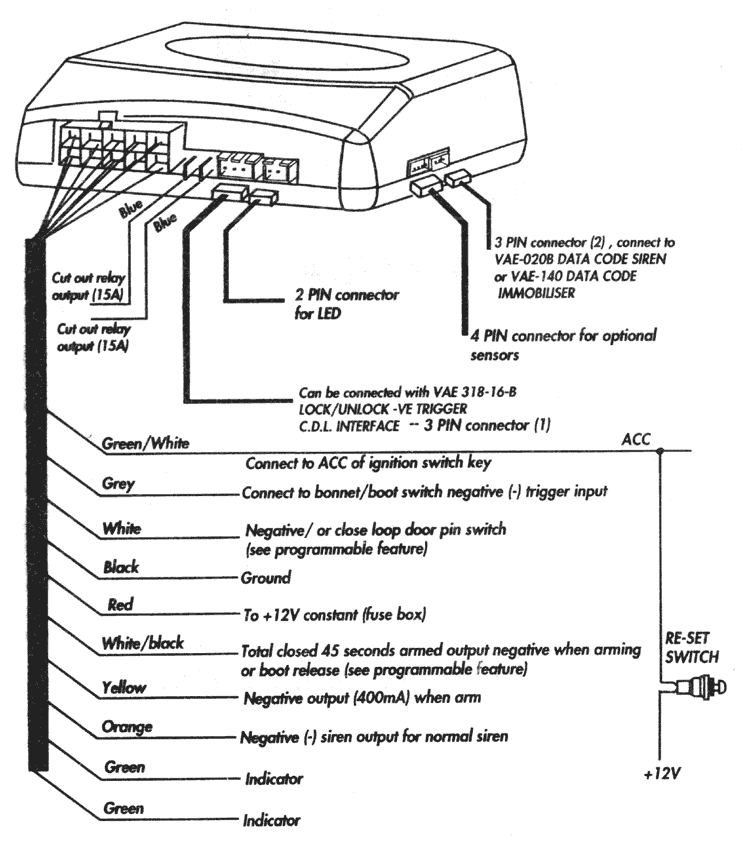

| Item | Color | Description |
|---|---|---|
| 10 PIN connector | Green/white | Connect to ACC of ignition key switch |
| Grey | -VÅ signal input connect to bonnet/boot switch | |
| White | -VE / or close loop input connect to door pin switch | |
| Black | Connect to ground | |
| Red | Connect to + 12V constant (15A fuse) | |
| White/black | Total closed 45 seconds armed output (o) when arming / or boot release (see programmable feature) | |
| Yellow | -VE output when arm (400m A) | |
| Orange | -VE output (1A) for siren | |
| Green | With 7.5A X 2 fuse output connect to 2 indicators | |
| Cut out | Blue Blue |
One cut out relay output (with two wires, both in 15A) |
| 3 PIN connector (1) | Can be connected with VAE 318-16-B LOCK/UNLOCK -VE TRIGGER C.D.L INTERFACE | |
| 2 PIN connector | For LED | |
| 4 PIN connector | For optional sensors | |
| 3 PIN connector (2) | Connect to VAE - 020B DATA CODE SIREN or VAE - 140 DATA CODE IMMOBILISER |
The system provides software selectable feature to match your requirements.
The system has several selectable features which are listed in TABLE A. To program these features, please refer TABLE B.
| Turn ignition of times | Selectable Feature | Pre-set |
|---|---|---|
| 6 | Arm/ disarm chirp ON/OFF | ON |
| 7 | Boot release/Total close output | Boot release |
| 8 | Auto arm ON/OFF | OFF |
| 10 | Re-arm ON/OFF | OFF |
| 11 | CDL pulse lock/unlock 0.5/0.5, 5/5, 30/0.5 sec. | 0.5/0.5 sec. |
| 12 | Door trigger -VE / close loop | -VE |
| 13 | Error chirp ON/OFF | ON |
| 15 | Auto arm trigger alarm HOT-WIRE / FULL | HOT-WIRE |
| 17 | Exterior illumination ON/OFF | OFF |
| 18 | Alarm history report | |
| 20 | Transmitter programming |
| What function you want to do | What you need to do | Response |
|---|---|---|
| Programming features (if any features of Table A want to be changed) | Disarm the system | Same response is active disarm |
| Turn the ignition key OFF-ACC-OFF the required number of times within 20 seconds (Please refer to Table A) then press CH-1 | Indicator will flash the same number of turning to confirm the selection has been changed |
| What function you want to do | What you need to do | Systems Response |
|---|---|---|
| Adjust the CDL pulse | Disarm the system | Same response as active disarm |
| Turn the ignition key OFF~ AÑÑ-OFF 11 times within 20 seconds and press CH-1 | Indicator will flash 1 1 times to conform enter the adjustment mode | |
| Press the CH-1 Note : until the type you selected |
1 chirp, 1 flash to confirm 0.5/0.5 sec. 2 chirps, 2 flashes to confirm 5/5 sec. 3 chirps, 3 flashes to confirm 30/0.5 sec. |
Note: Turn the ignition key to ACC position, or 10 seconds are elapsed, the system will go back to disarm mode.
| What function you want to do | What you need to do | Systems Response |
|---|---|---|
| How to display the history report | Disarm the system | Same response as active disarm |
| Turn the ignition key OFF-ACC-OFF 18 times within 20 seconds and press CH-1 | Indicator will flash 18 times to conform enter the history report mode | |
| LED will display trigger report of the last 16 times (The trigger report please refer to Diagnostic of operating manual) Note : Last trigger will be displayed first | ||
| How to clear the history report | Turn ignition key to ACC and press CH-1 within 5 seconds (if you do not press CH-1 within 5 sec, the system will go to the disarm mode without clear the history report ) | Clear the last 16 times history report Same response as active disarm |
When you purchase this alarm, firstable you must program the transmitter and emergency reset code by yourself and please put this code number in the back side of this card, once you need emergency reset me system you need this code number.
| What you need to do | Response | |
|---|---|---|
| Program the Transmitter | Disarm the system (press CH-2) | Same response as active disarm |
| Turn the ignition key OFF-ACC-OFF 20 times within 20 seconds | Indicator will flash 20 times to confirm into the transmitter program mode | |
| Press CH-1 of each pre-programming transmitter one by one whit in 10 seconds (Max. 3 pcs) | Siren one chirp and indicator flash once to confirm every transmitter has been programmed | |
| Program re-set code number | After 3 pcs transmitter been programmed, or do not need to program, then turn ignition key to ACC to leave the learning mode and into re-set code setting. Turn ignition key to ACC again, then into me double security code setting. If do not want to change me re-set code, please turn ignition key to OFF before LED flash. | LED on 20 seconds, then start to flash LED will flash original setting times (pre-set : 6 times) |
| If you want to change re-set code, let ignition key stay in ACC. While LED flash the times you need, turn ignition key back to OFF. IE D will flash your setting times, then into active disarm. | LED on 20 seconds, then start to flash 1 ~ 30 times LED flash Same response as active disarm |
| What you need to do | Response |
|---|---|
| Open the door and leave the door open | Trigger alarm 30 seconds or indicator flash 30 seconds (when the system is in auto arm mode) |
| In the alarm 30 seconds duration time, press RE-SET SWITCH your setting times (1 ~ 30) If number is correct, after the alarm 30 seconds duration time, into active disarm. If number is wrong, need to go back to re-start all procedure. |
Same response as active disarm |
