Entry Light Control System Component Location Index

Entry Light Control System Component Location Index



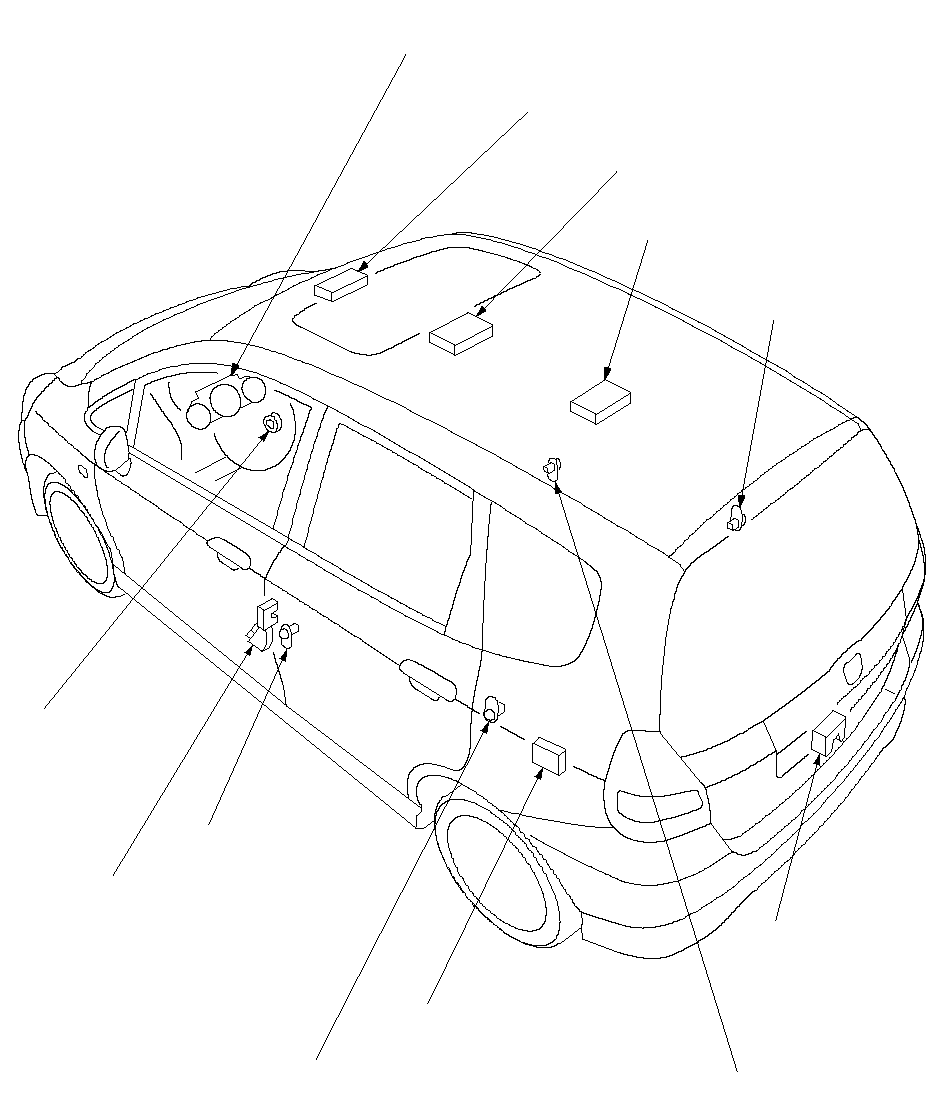

NOTE: LHD type is shown, RHD type is similar.RIGHT REAR DOOR SWITCHREAR CEILING RIGHT (With sunroof)
Test,
Replacement, FRONT CEILING LIGHT (Without sunroof)
Test,
Replacement, FRONT CELING LIGHT/SPOTLIGHT (With sunroof)
Test,
Replacement, GAUGE ASSEMBLY
(Has built in the entry light control circuit)
Input Test, IGNITION KEY SWITCH
Test, DRIVER¢S DOOR LOCK KNOB SWITCH
Test, DRIVER¢S DOOR SWITCHLEFT REAR DOOR SWITCHTAILGATE LIGHT
Test,
Replacement, FRONT PASSENGER¢S DOOR SWITCHTAILGATE LATCH SWITCH
Test,
