Radiator and Fan Replacement
Radiator and Fan Replacement
| 1. | Drain the engine coolant. |
| 2. | Remove the front bumper, and front bumper bracket. |
| 3. | Remove the air cleaner housing. |
| 4. | Remove the upper radiator hose, lower radiator hose and Automatic Transmission Fluid (ATF) cooler hoses.

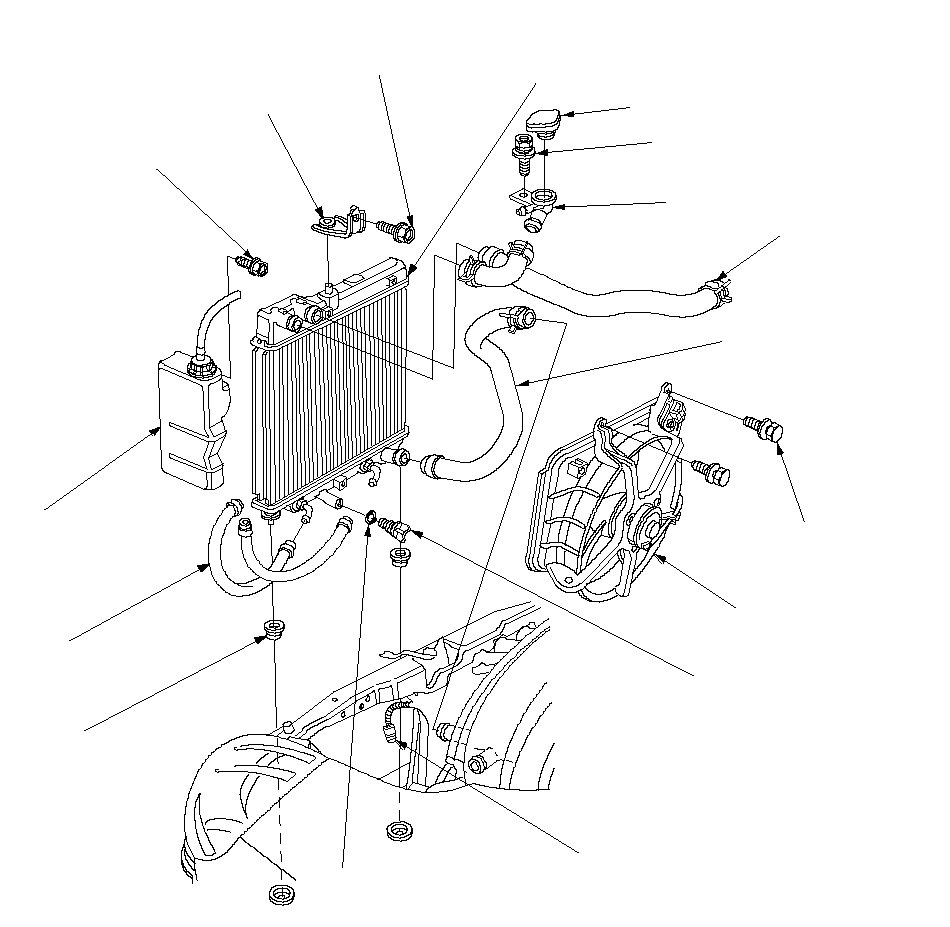

 LOWER RADIATORHOSEUPPER BRACKET AND CUSHIONRADIATOR CAPRADIATORRADIATOR FAN ASSEMBLYDRAIN PLUGATF COOLER HOSESO-RING Replace.RESERVE TANKFAN MOTOR CONNECTOR6 x 1.0 mm 12 N·m (1.2 kgf·m, 8.7 lbf·ft)UPPER RADIATOR HOSE6 x 1.0 mm 12 N·m (1.2 kgf·m, 8.7 lbf·ft)6 x 1.0 mm 12 N·m (1.2 kgf·m, 8.7 lbf·ft)RADIATOR CAP BASE6 x 1.0 mm 7 N·m (0.7 kgf·m, 5 lbf·ft)LOWER CUSHION |
| 5. | Disconnect the fan motor connector, and remove the upper bracket and cushion, then pull up the radiator. |
| 6. | Remove the fan shroud assembly and other parts from the radiator. |
| 7. | Install the radiator in the reverse order of removal. Make sure the upper and lower cushions are set securely. |
| 8. | Install the air cleaner housing. |
| 9. | Install the front bumper bracket, and apply body paint to the mounting bolts, then install the front bumper. |
| 10. | Fill the radiator with engine coolant and bleed the air. |
