Keyless/Power Door Lock System Component Location Index (RHD)
Keyless/Power Door Lock System Component Location Index

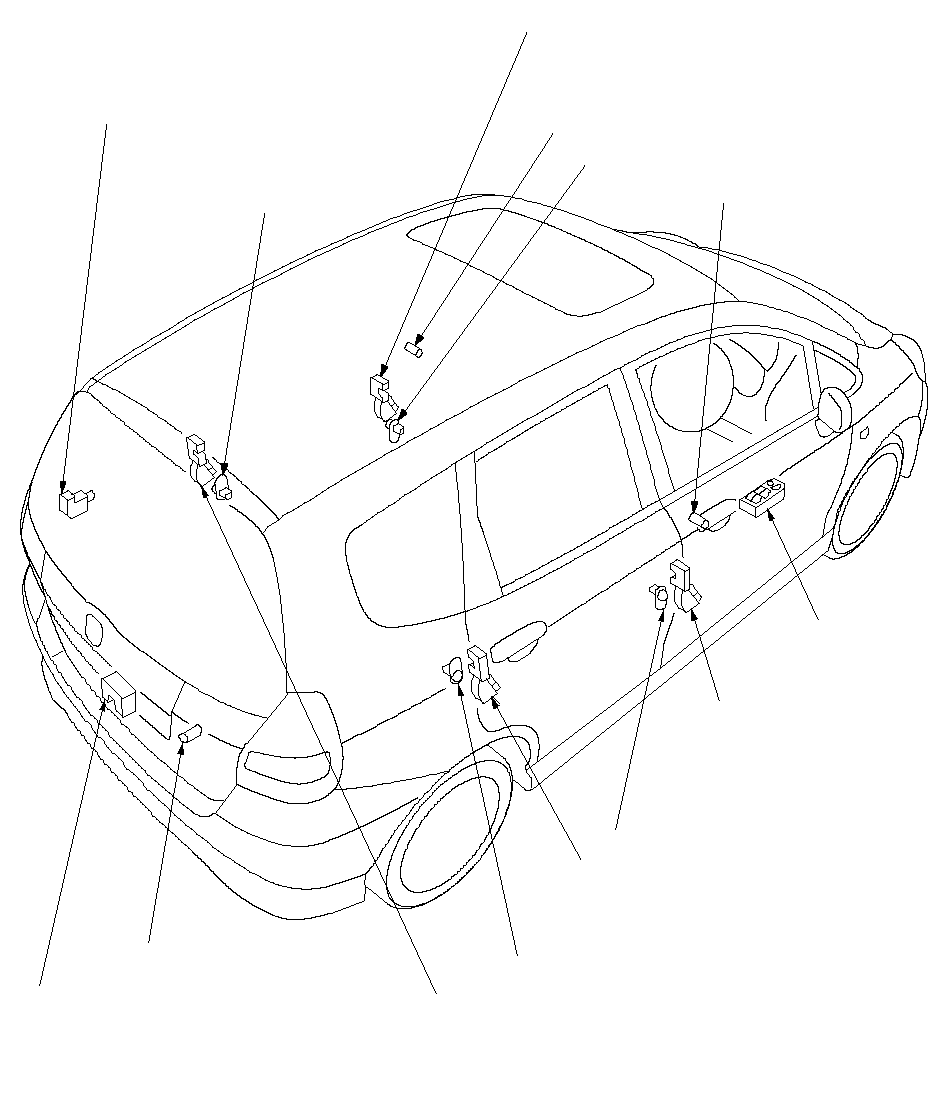

RHD type:
LEFT REAR DOOR SWITCHFRONT PASSENGER¢S SUPER LOCKING*1ACTUATOR/KNOB SWITCH
Aactuator Test,
Knob Switch Test, FRONT PASSENGER¢S KEY CYLINDER SWITCH*1
Test, FRONT PASSENGER¢S DOOR SWITCHDRIVER¢S KEY CYLINDER
SWITCH*1
Test, POWER WINDOW MASTER
SWITCH
(Has built-in driver¢s
door lock switch)
Test, DRIVER¢S DOOR SWITCHRIGHT REAR DOOR SWITCHTAILGATE KEY CYLINDER SWITCH*1
Test, FUEL FILL DOOR LOCK ACTUATOR (KU,KQ model)
How to Cope in the Trouble,
Go to.
Removal, *1: KE model
*2: Except KE modelFRONT PASSENGER¢SDOOR LOCK ACTUATOR*2
Test, DRIVER¢S SUPER LOCKING
ACTUATOR/KNOB SWITCH*1
Actuator Test,
Knob Switch Test, DRIVER¢SDOOR LOCK
ACTUATOR/KNOB SWITCH*2
Actuator Test,
Knob Switch Test, RIGHT REAR SUPER LOCKING ACTUATOR/
KNOB SWITCH*1
Actuator Test,
Knob Switch Test, RIGHT REAR DOOR LOCK ACTUATOR*2
Test, LEFT REAR SUPER LOCKING ACTUATOR/KNOB SWITCH*1
Actuator Test,
Knob Switch Test, LEFT REAR DOOR LOCK ACTUATOR*2
Test, TAILGATE LATCH SWITCH
Test, TAILGATE LOCK ACTUATOR
Test, TAILGATE LOCK KNOB SWITCH*1
Test,

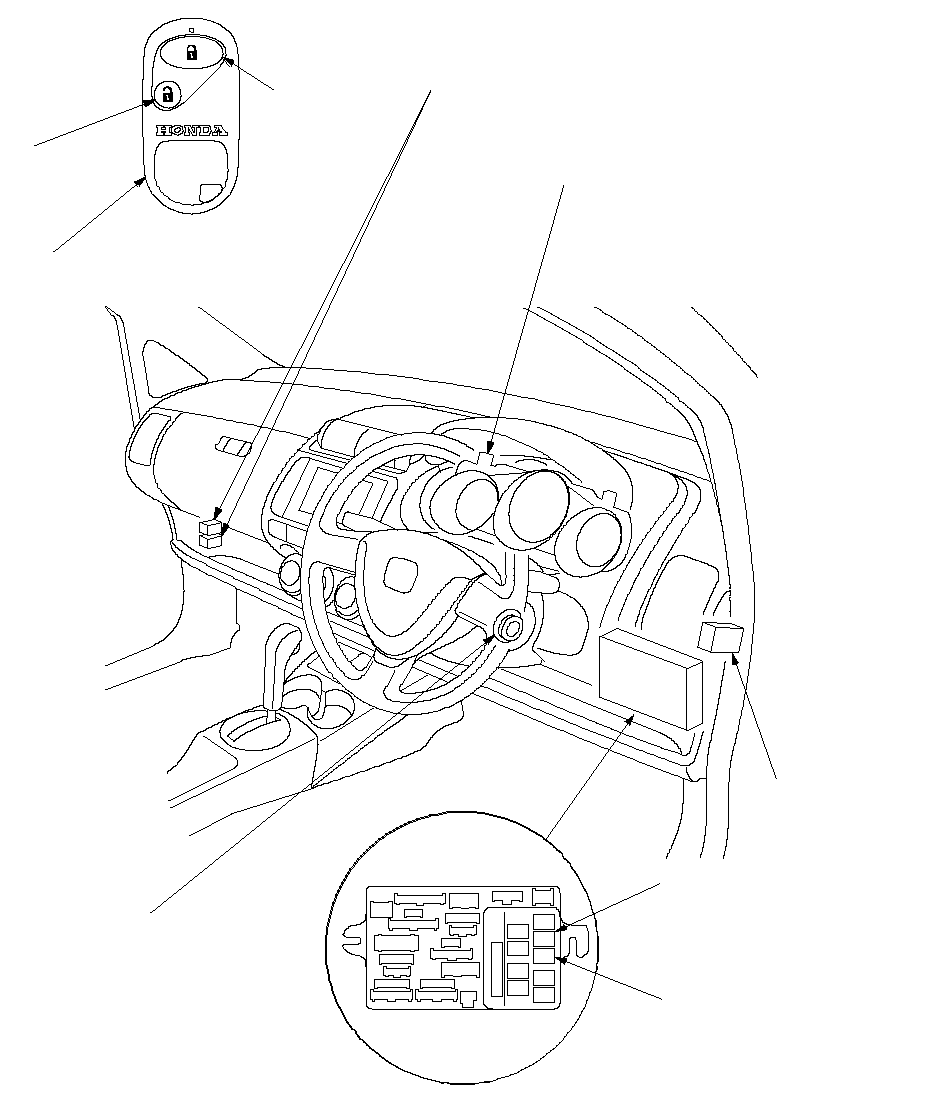

RHD type:
UNLOCK BUTTONLOCK BUTTONTRANSMITTERTest,
Programming, LEFT SUPER LOCKING RELAY (KE model)
Test, GAUGE ASSEMBLY
(Has built in the super locking
or power dear lock control circuit)
Input Test, KEYLESS RECEIVER UNIT
Input Test, POWER DOOR UNLOCK/
FUEL FILL DOOR UNLOCK
Test, POWER DOOR LOCK/
FUEL FILL DOOR LOCK RELAY
Test, IGNITION KEY SWITCH
Test, RIGHT SUPER LOCKING RELAY (KE model)
Test,
