Exhaust Pipe and Muffler Replacement
Exhaust Pipe and Muffler Replacement

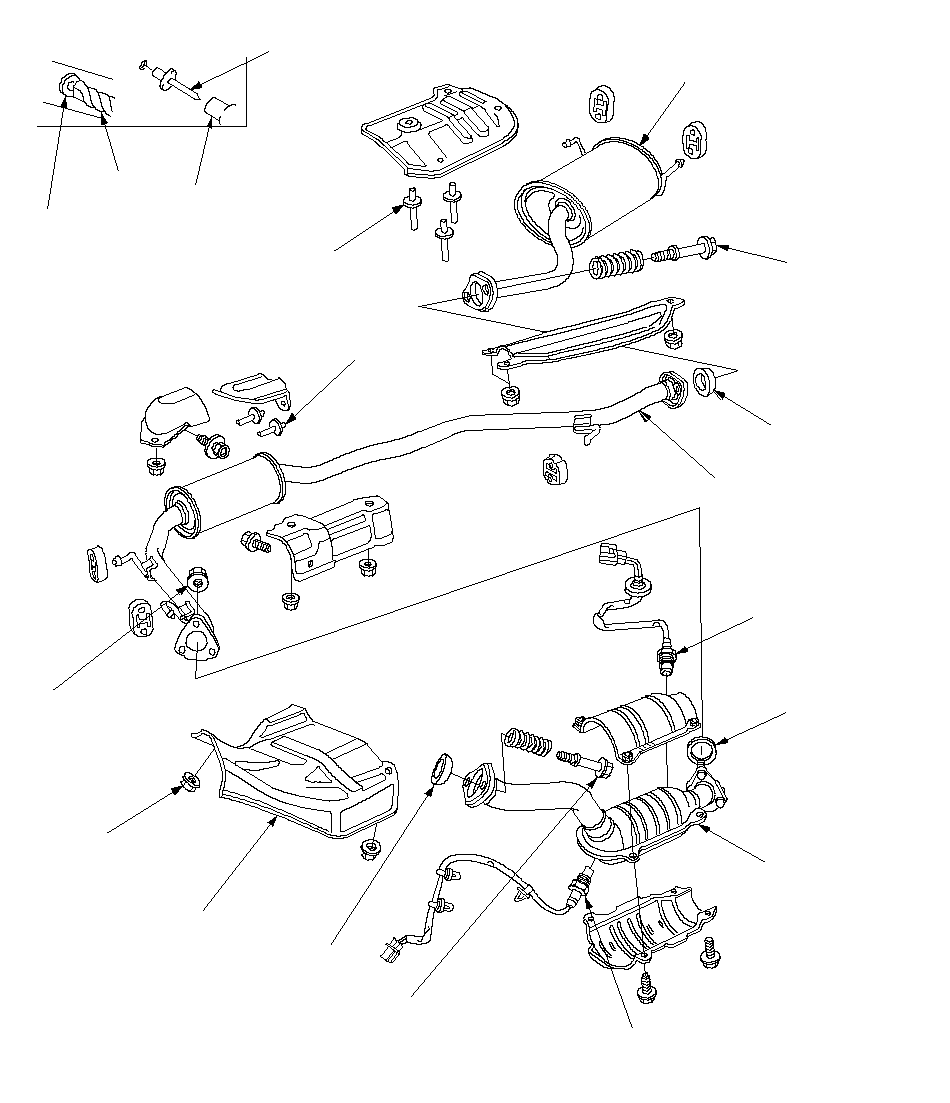

NOTE: Use new gaskets and self-locking nuts when reassembling.
SELF-LOCKING NUT10 x 1.25 mm
33 N·m
(3.4 kgf·m,
25 lbf·ft)
Replace.RIVET
Replace.6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)Rivet
RemovalRIVET
Outer diameter:
4.8 mm (1.89 in.)Center punch
the rivet.DRILLRivet
InstallationRIVET TOOLGASKET
Replace.SECONDARY HEATED
OXYGEN SENSOR
(SECONDARY HO2S)
44 N·m (4.5 kgf·m,
33 lbf·ft)MUFFLERGASKET
Replace.THREE WAY
CATALYTIC
CONVERTER
(TWC)PRIMARY HEATED
OXYGEN SENSOR
(PRIMARY HO2S)
44 N·m (4.5 kgf·m, 33 lbf·ft)GASKET
Replace.EXHAUST
PIPE BRIVET
Replace.8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)
Replace.
Tighten the bolts in steps,
alternating side-to-sideHEAT SHIELD8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)
Replace.
Tighten the bolts in steps,
alternating side-to-side
