Roof Wire Harness Locations (RHD)

Roof Wire Harness Locations

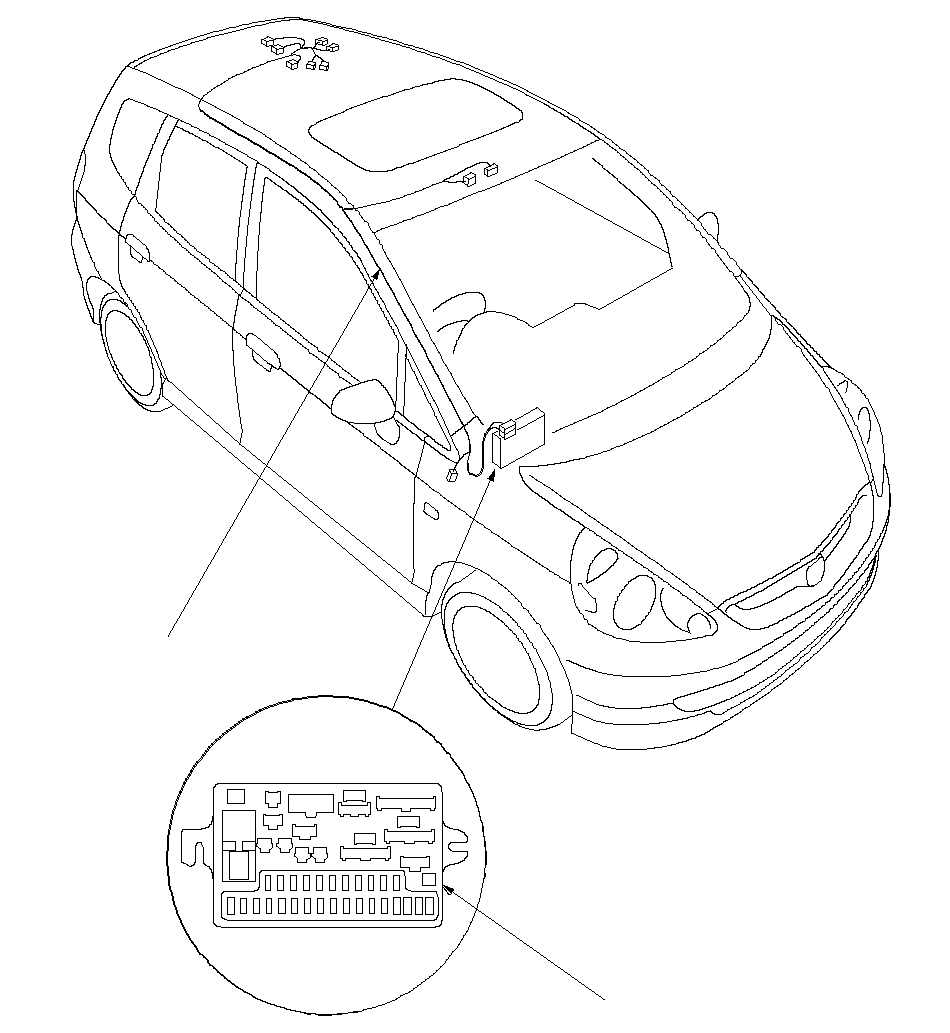

RHD type:

SAA2E04J54283251701DBAD01ROOF WIRE HARNESS
(With sunroof)UNDER-DASH FUSE/RELAY BOX

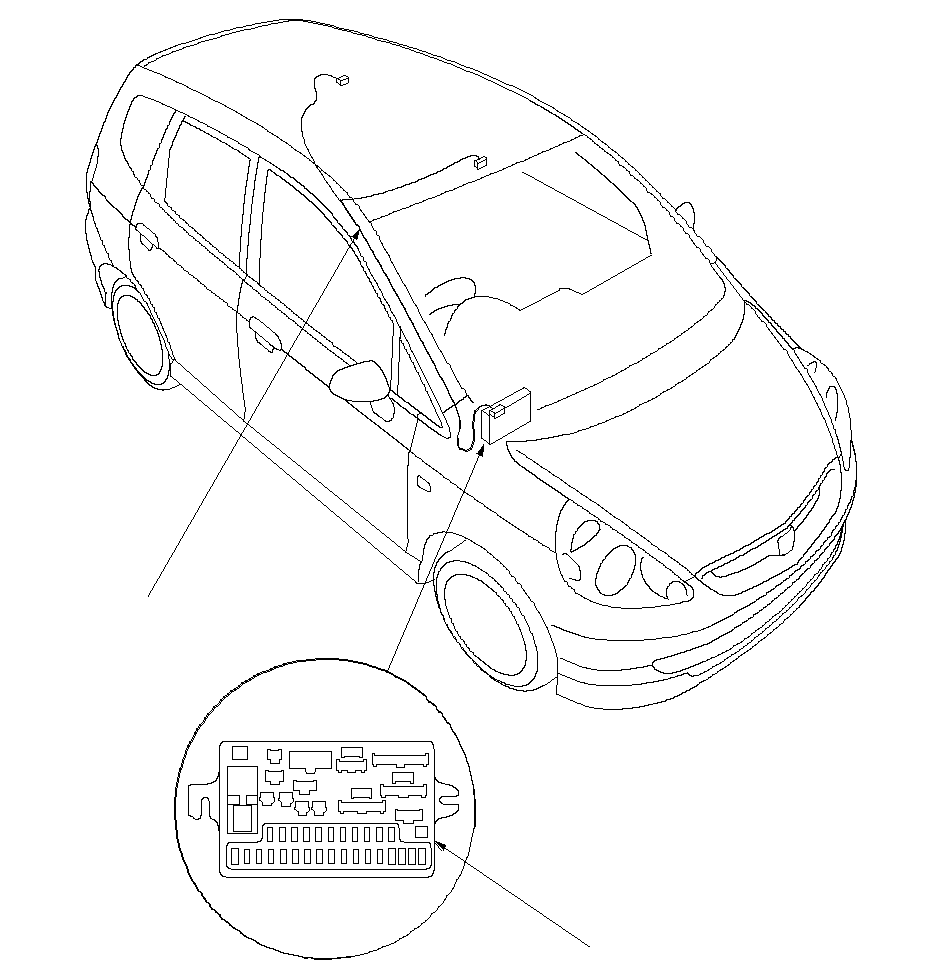

RHD type:

SAA2E04J54283251701DBAD02ROOF WIRE HARNESS
(Without sunroof)UNDER-DASH FUSE/RELAY BOX
