Throttle Body Removal/Installation (Without ETCS)

Throttle Body Removal/Installation

NOTE:

Do not adjust the throttle stop screw.
After reassembly, adjust the throttle cable.
The Throttle Position (TP) sensor is not removable.

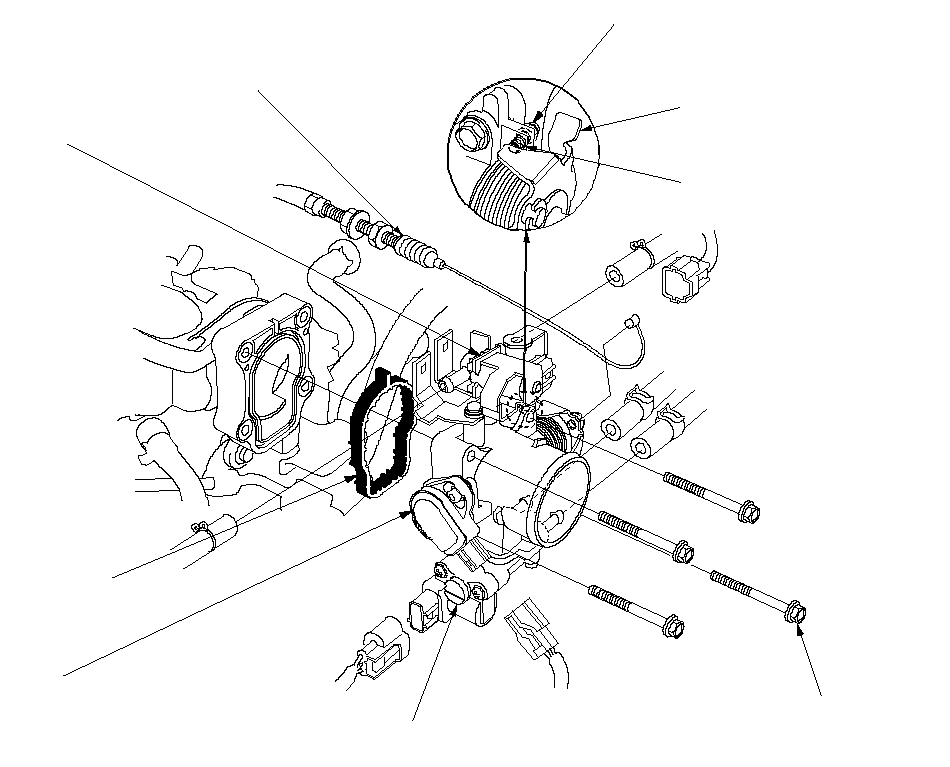

THROTTLE CABLE12 N·m
(1.2 kgf·m,
8.7 lbf·ft)THROTTLE
POSITION
(TP) SENSORGASKET
Replace.THROTTLE
STOP SCREW
(Do not adjust)There should be
no clearanceTHROTTLE
LEVERIDLE AIR CONTROL
(IAC) VALVEEVAPORATIVE EMISSION (EVAP)
CANISTER PURGE VALVE
