Exhaust Pipe and Muffler Replacement (KU)
Exhaust Pipe and Muffler Replacement
KU model

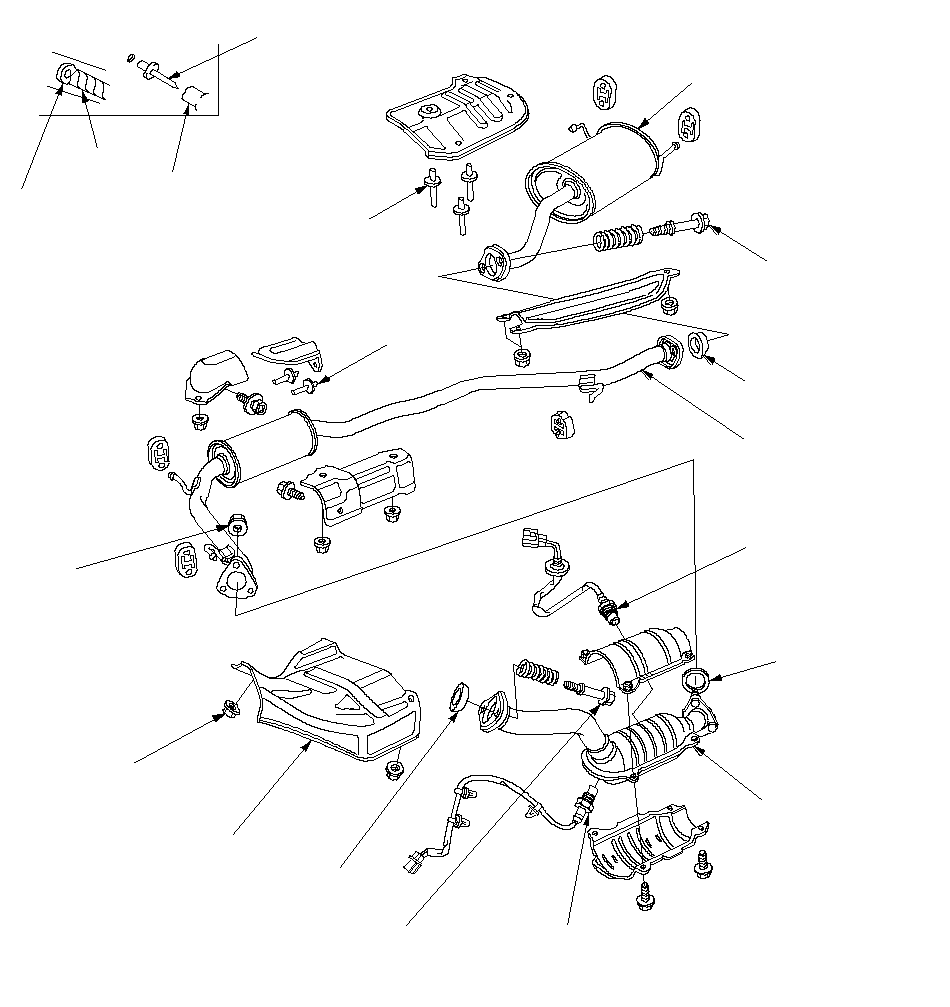

NOTE: Use new gaskets and self-locking nuts when reassembling.
SELF-LOCKING NUT10 x 1.25 mm
33 N·m
(3.4 kgf·m, 25 lbf·ft)
Replace.RIVET
Replace.6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)GASKET
Replace.SECONDARY HEATED
OXYGEN SENSOR
(SECONDARY HO2S)
44 N·m
(4.5 kgf·m, 33 lbf·ft)MUFFLERGASKET
Replace.THREE WAY CATALYTIC
CONVERTER (TWC)PRIMARY HEATED
OXYGEN SENSOR
(PRIMARY HO2S)
44 N·m (4.5 kgf·m, 33 lbf·ft)GASKET
Replace.EXHAUST
PIPE BRIVET
Replace.8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)
Replace.
Tighten the bolts in steps,
alternating side-to-sideHEAT SHIELD8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
Replace.
Tighten the bolts in steps,
alternating side-to-sideRivet
RemovalRIVET
Outer diameter:
4.8 mm (1.89 in.)Center punch
the rivet.DRILLRivet
InstallationRIVET TOOL
