Interior Trim Removal/Installation - Trunk Floor and Side Area

NOTE:

Put on gloves to protect your hands.
When prying components, use the handy remover set, or equivallent.
Take care not to bend or scratch the trim and panels.

Remove the trim as shown.

Install the trim in the reverse order of removal, and note these items:

Replace any damaged clips.
Push the clips into place securely.
When installing the rear side trim panel, make sure there are no pinches in the seat belt.
Before installing the anchor bolt, make sure there are no twists or kinks in the seat belt.

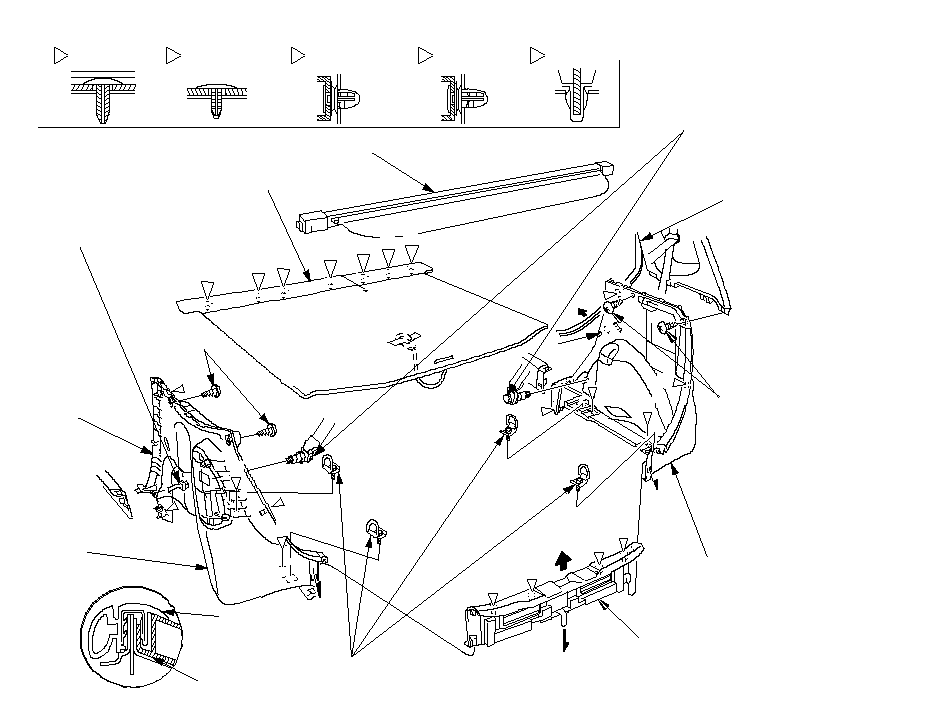

Fastener Locations: Clip, 7AB: Clip, 4C: Clip, 6REAR SEAT BELT
LOWER ANCHOR BOLT
7/16-20 UNF
32 N·m (3.3 kgf·m, 24 lbf·ft)TONNEAU COVERTRUNK COMPARTMENT
LIGHT CONNECTOR
(For some models)ACCC[A]CD: Clip, 2E: Clip, 2SPARE TIRE LIDSCREWSLEFT TRUNK
SIDE TRIM PANELDOOR
INNER SEALTIE-DOWN HOOKS
6 x 1.0 mm 9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)AAAAAECBBBBDDHOOKSREAR DOOR
INNER SEALSCREWSE[A][A] PortionsRIGHT TRUNK
SIDE TRIM PANELREAR TRIM PANELCA
