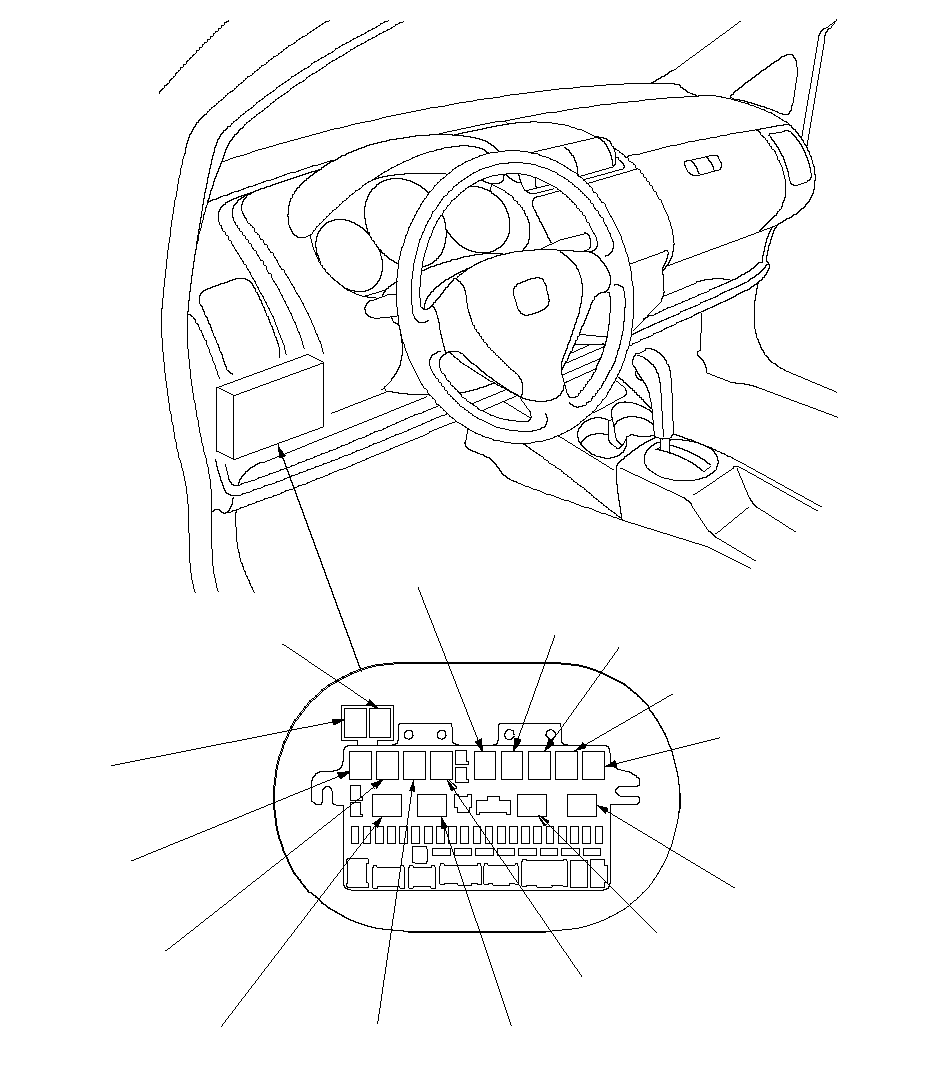

Relay and Control Unit Locations - Dashboard #1 (LHD)
Relay and Control Unit Locations - Dashboard #1
LHD type:
POWER MIRROR
DEFOGGER
RELAY or
FRONT FOG
LIGHT RELAY
(Without rear fog light)LEFT ACTIVATION
INDICATOR RELAYRIGHT ACTIVATION
INDICATOR RELAYPGM-FI MAIN
RELAY1PGM-FI MAIN
RELAY2TAILLIGHT
RELAYFRONT FOG
LIGHT RELAYREAR FOG LIGHT RELAY
(With front fog lights)POWER DOOR
UNLOCK RELAYPOWER DOOR
LOCK RELAYSTARTER CUT
RELAY (CVT)POWER WINDOW
RELAYBLOWER MOTOR
RELAYA/T REVERSE RELAYREAR WINDOW
DEFOGGER RELAY
