PGM-FI System Component Location Index (L12A/L13A without ETCS)

PGM-FI System Component Location Index

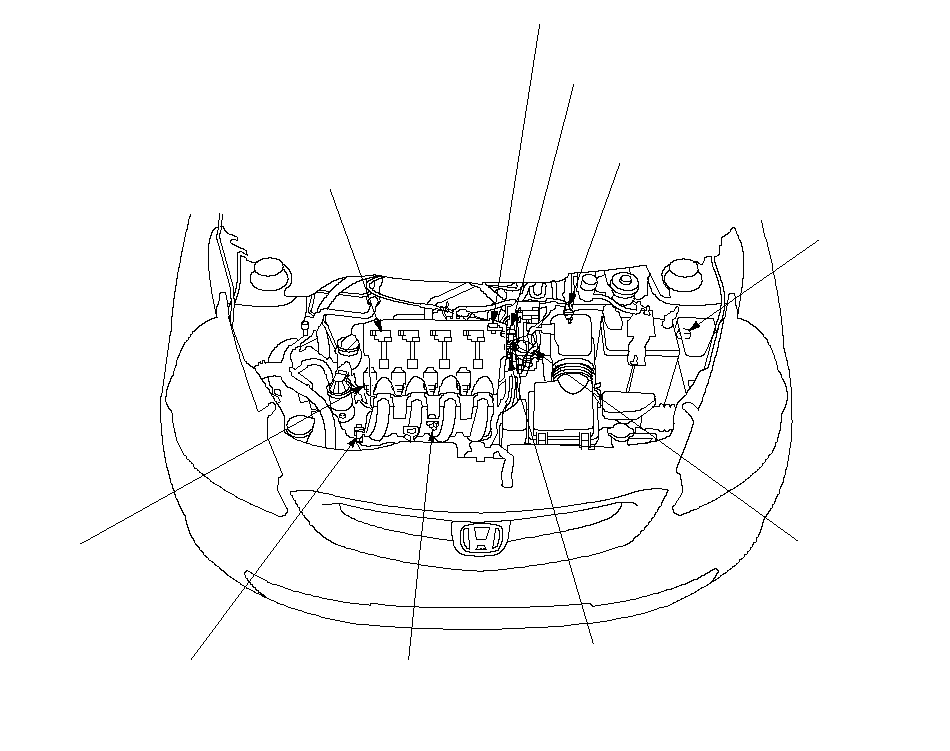

Except L15A1 engine:

SAA5ESPA20326900000DAAD01MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00CAMSHAFT POSITION (CMP) SENSOR
(TOP DEAD CENTER (TDC) SENSOR)
Replacement,
in the Shop Manual, P/N 62SAA00INTAKE AIR TEMPERATURE
(IAT) SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00ELECTRICAL
LOAD DETECTOR
(ELD)REAR IGNITION COILENGINE COOLANT TEMPERATURE (ECT) SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00KNOCK SENSOR
Replacement,

in the Shop Manual,
P/N 62SAA00CRANKSHAFT POSITION
(CKP) SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00*: The illustration shows LHD model.THROTTLE POSITION
(TP) SENSORFRONT IGNITION COIL



SAA5ESPA20326900000DAAD06SECONDARY HEATED OXYGEN
SENSOR (SECONDARY HO2S)
(SENSOR 2)
Replacement,
in the Shop Manual, P/N 62SAA00PRIMARY HEATED OXYGEN
SENSOR (PRIMARY HO2S)
(SENSOR 1)
Replacement,
in the Shop Manual, P/N 62SAA00

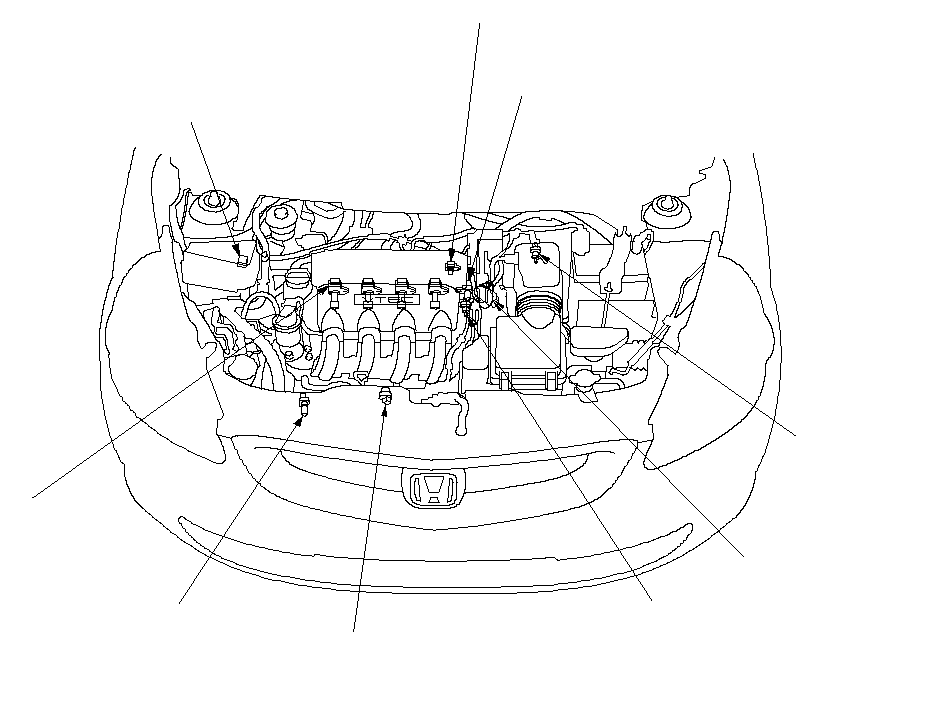

L15A1 engine:

SAA5ESPA20326900000DAAD02INTAKE AIR
TEMPERATURE
(IAT) SENSOR
Replacement,

in the Shop Manual,
P/N 62SAA00ENGINE COOLANT TEMPERATURE
(ECT) SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00KNOCK SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00THROTTLE POSITION
(TP) SENSORCRANKSHAFT POSITION (CKP)
SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00ELECTRICAL
LOAD DETECTOR (ELD)IGNITION
COILCAMSHAFT POSITION (CMP) SENSOR
(TOP DEAD CENTER (TDC) SENSOR)
Replacement,
in the Shop Manual, P/N 62SAA00MANIFOLD ABSOLUTE
PRESSURE (MAP) SENSOR
Replacement,
in the Shop Manual, P/N 62SAA00



SAA5ESPA20326900000DAAD03SECONDARY HEATED OXYGEN
SENSOR (SECONDARY HO2S)
(SENSOR 2)
Replacement,
in the Shop Manual, P/N 62SAA00PRIMARY HEATED OXYGEN
SENSOR (PRIMARY HO2S)
(SENSOR 1)
Replacement,
in the Shop Manual, P/N 62SAA00

LHD:

SAA5ESPA20326900000DAAD04POWERTRAIN CONTROL MODULE
(PCM)
General Troubleshooting Information,
DATA LINK CONNECTOR (DLC)
General Troubleshooting Information,
INERTIA SWITCHENGINE CONTROL MODULE (ECM)/

RHD:

SAA5ESPA20326900000DAAD05POWERTRAIN CONTROL MODULE
(PCM)
General Troubleshooting Information,
DATA LINK CONNECTOR (DLC)
General Troubleshooting Information,
INERTIA SWITCHENGINE CONTROL MODULE (ECM)/
