HEADLIGHT ASSEMBLY (for Halogen Headlight) > ADJUSTMENT

for Preparation Click here


HINT:
It is possible that a bulb is incorrectly installed, affecting headlight aim. Bulb installation should be considered prior to performing the adjustment procedure.



1. PREPARE VEHICLE FOR HEADLIGHT AIM ADJUSTMENT

  1. Prepare the vehicle:

    1. Ensure that there is no damage or deformation to the body around the headlights.
    2. Fill the fuel tank.
    3. Make sure that the oil is filled to the specified level.
    4. Make sure that the coolant is filled to the specified level.
    5. Inflate the tires to the appropriate pressure.
    6. Unload the trunk and vehicle, ensuring that the spare tire, tools and jack are in their original positions (except Taiwan).
    7. Unload the trunk and vehicle, ensuring that the spare tire, tools and jack are also removed (for Taiwan).
    8. Sit a person of average weight (75 kg, 165 lb) in the driver's seat (except Taiwan).
    9. Sit a person of average weight (55 kg, 121 lb) in the driver's seat (for Taiwan).

    10. E107873
      Vehicles with manual headlight beam level control system should be adjusted to "0".



2. PREPARE FOR HEADLIGHT AIMING


    E220594E04

  1. Prepare the vehicle (except Taiwan):

    1. Place the vehicle in a location that is dark enough to clearly observe the cutoff line. The cutoff line is a distinct line, below which light from the headlights can be observed and above which it cannot.
    2. Place the vehicle at a 90° angle to the wall.
    3. Create a 25 m (82 ft.) distance between the vehicle (headlight bulb center) and the wall.
    4. Make sure that the vehicle is on a level surface.
    5. Position the front wheels straight ahead.
    6. Bounce the vehicle up and down to settle the suspension.

      NOTICE:
      A distance of 25 m (82 ft.) between the vehicle (headlight bulb center) and the wall is necessary for proper aim adjustment. If sufficient space is not available, secure a distance of exactly 3 m (9.84 ft.) to allow for checking and adjustment of headlight aim. (The size of the target zone will change with the distance, so follow the instructions in the illustration.)



    E220594E05

  1. Prepare the vehicle (for Taiwan):

    1. Place the vehicle in a location that is dark enough to clearly observe the cutoff line. The cutoff line is a distinct line, below which light from the headlights can be observed and above which it cannot.
    2. Place the vehicle at a 90° angle to the wall.
    3. Create a 10 m (32.8 ft.) distance between the vehicle (headlight bulb center) and the wall.
    4. Make sure that the vehicle is on a level surface.
    5. Position the front wheels straight ahead.
    6. Bounce the vehicle up and down to settle the suspension.

      NOTICE:
      A distance of 10 m (32.8 ft.) between the vehicle (headlight bulb center) and the wall is necessary for proper aim adjustment. If sufficient space is not available, secure a distance of exactly 3 m (9.84 ft.) to allow for checking and adjustment of headlight aim. (The size of the target zone will change with the distance, so follow the instructions in the illustration.)

  1. Prepare a piece of thick white paper (approximately 2 m (6.6 ft.) (height) x 4 m (13.1 ft.) (width)) to use as a screen.

  1. Draw a vertical line down the center of the screen (V line).



  1. Set the screen as shown in the illustration (except Taiwan).


    E220595E04

    HINT:
    1. Stand the screen perpendicular to the ground.
    2. Align the V line on the screen with the center of the vehicle.

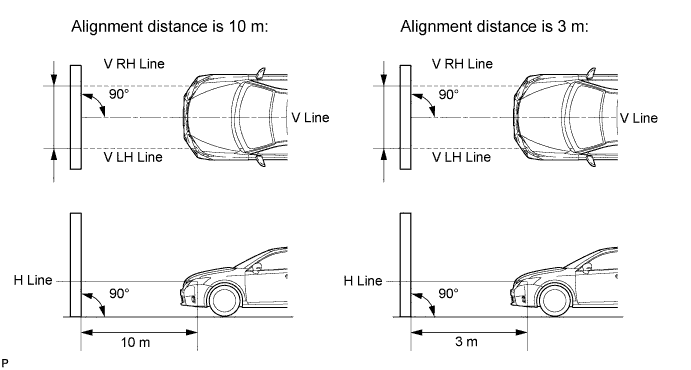

  1. Set the screen as shown in the illustration (for Taiwan).


    E220595E05

    HINT:
    1. Stand the screen perpendicular to the ground.
    2. Align the V line on the screen with the center of the vehicle.



    I033423E15

  1. Draw base lines (H, V LH, and V RH lines) on the screen as shown in the illustration.

    HINT:
    1. The base lines differ for "low beam inspection" and "high beam inspection".
    2. Mark the headlight bulb center marks on the screen. If the center mark cannot be observed on the headlight, use the center of the headlight bulb.


    1. H Line (Headlight height):
      Draw a horizontal line across the screen so that it passes through the center marks. The H line should be at the same height as the headlight bulb center marks of the low beam headlights.

    2. V LH Line, V RH Line (Center mark position of left-hand (LH) and right-hand (RH) headlights):
      Draw two vertical lines so that they intersect the H line at each center mark (aligned with the center of the low beam headlight bulbs).



3. INSPECT HEADLIGHT AIMING

  1. Cover the headlight or disconnect the connector of the headlight on the opposite side to prevent light from the headlight that is not being inspected from affecting the headlight aiming inspection.

    NOTICE:
    Do not keep the headlight covered for more than 3 minutes. The headlight lens is made of synthetic resin, which may melt or be damaged due to excessive heat.

    HINT:
    When checking the aim of the high beam, cover the low beam or disconnect the connector.

  1. Start the engine.



  1. Turn on the headlights and check if the cutoff line for each low beam matches the preferred cutoff line in the illustration (except Taiwan).


    E180253E01

    HINT:
    1. Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.
    2. If the alignment distance is 25 m (82 ft.):
      The low beam cutoff line should be within 48 mm (1.89 in.) and 698 mm (27.4 in.) below the H line as well as 248 mm (9.79 in.) left or right of the V LH or V RH line.
    3. If the alignment distance is 3 m (9.84 ft.):
      The low beam cutoff line should be within 6 mm (0.227 in.) and 83 mm (3.29 in.) below the H line as well as 29 mm (1.17 in.) left or right of the V LH or V RH line.
    4. If the alignment distance is 25 m (82 ft.):
      The horizontal line of the preferred low beam cutoff line is 249 mm (9.79 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.
    5. If the alignment distance is 3 m (9.84 ft.):
      The horizontal line of the preferred low beam cutoff line is 30 mm (1.18 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.



  1. Turn on the headlights and check if the cutoff line for each low beam matches the preferred cutoff line in the illustration (for Taiwan).


    E180253E02

    HINT:
    1. Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.
    2. If the alignment distance is 10 m (32.8 ft.):
      The low beam cutoff line should be within 20 mm (0.756 in.) and 150 mm (5.90 in.) below the H line as well as 174 mm (6.87 in.) left or right of the V LH or V RH line.
    3. If the alignment distance is 3 m (9.84 ft.):
      The low beam cutoff line should be within 6 mm (0.227 in.) and 45 mm (1.77 in.) below the H line as well as 52 mm (2.06 in.) left or right of the V LH or V RH line.
    4. If the alignment distance is 10 m (32.8 ft.):
      The horizontal line of the preferred low beam cutoff line is 99 mm (3.92 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.
    5. If the alignment distance is 3 m (9.84 ft.):
      The horizontal line of the preferred low beam cutoff line is 30 mm (1.18 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.



  1. Turn on the high beams and check if the center of intensity for each high beam matches the preferred center of the intensity in the illustration (except Taiwan).


    E189709E03

    HINT:
    1. Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.
    2. If the alignment distance is 25 m (82 ft.):
      The high beam center of intensity should be within 174 mm (6.87 in.) above and 248 mm (9.79 in.) below the H line as well as 248 mm (9.79 in.) left or right of the V LH or V RH line.
    3. If the alignment distance is 3 m (9.84 ft.):
      The high beam center of intensity should be within 20 mm (0.824 in.) above and 29 mm (1.17 in.) below the H line as well as 29 mm (1.17 in.) left or right of the V LH or V RH line.



  1. Turn on the high beams and check if the center of intensity for each high beam matches the preferred center of the intensity in the illustration (for Taiwan).


    E189709E04

    HINT:
    1. Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.
    2. If the alignment distance is 10 m (32.8 ft.):
      The high beam center of intensity should be within 69 mm (2.74 in.) above and 99 mm (3.91 in.) below the H line as well as 99 mm (3.91 in.) left or right of the V LH or V RH line.
    3. If the alignment distance is 3 m (9.84 ft.):
      The high beam center of intensity should be within 20 mm (0.824 in.) above and 29 mm (1.17 in.) below the H line as well as 29 mm (1.17 in.) left or right of the V LH or V RH line.



4. ADJUST HEADLIGHT AIMING

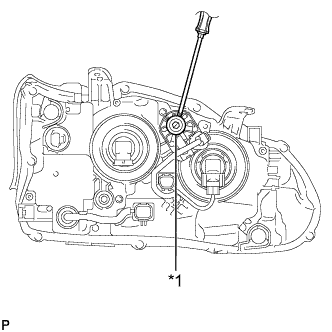

    E220591E01

  1. Adjust the aim vertically:
    Text in Illustration
    *1
    		Aiming Screw A
    Adjust the aim of each headlight to the specified range by turning each aiming screw A with a screwdriver.

    NOTICE:
    The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.

    HINT:
    1. The low beam light and the high beam light are a unit. Adjusting the aim on the low beam to the correct position should also result in the high beam adjustment being correct.
    2. If it is not possible to correctly adjust headlight aim, check bulb, headlight unit and headlight unit reflector installation.
    3. The headlight aim moves up when turning the aiming screw clockwise, and moves down when turning the aiming screw counterclockwise.
    4. Confirm the direction of rotation of the aiming screw by observing it while it is being adjusted. Due to the position of the screwdriver, the direction of rotation of the adjusting screw can be different than the direction of rotation of the screwdriver being used to adjust it.



    E220589E01

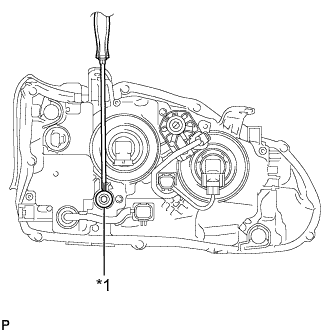

  1. Adjust the aim horizontally:
    Text in Illustration
    *1
    		Aiming Screw B
    Adjust the aim of each headlight to the specified range by turning each aiming screw B with a screwdriver.

    NOTICE:
    The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.

    HINT:
    1. The low beam light and the high beam light are a unit. Adjusting the aim on the low beam to the correct position should also result in the high beam adjustment being correct.
    2. If it is not possible to correctly adjust headlight aim, check bulb, headlight unit and headlight unit reflector installation.
    3. Confirm the direction of rotation of the aiming screw by observing it while it is being adjusted. Due to the position of the screwdriver, the direction of rotation of the adjusting screw can be different than the direction of rotation of the screwdriver being used to adjust it.
