RADIO ANTENNA CORD > REMOVAL

for Preparation Click here



1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY (for LHD)
(Click here)


2. REMOVE ANTENNA CORD SUB-ASSEMBLY (for LHD)


  1. Disconnect the connector.

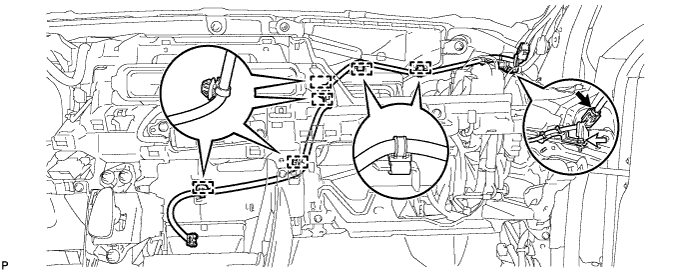

    E220811

  1. Remove the bolt.

  1. Disengage the 6 clamps and remove the antenna cord sub-assembly.



3. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for RHD)
(Click here)


4. REMOVE ANTENNA CORD SUB-ASSEMBLY (for RHD)


  1. Disconnect the connector.

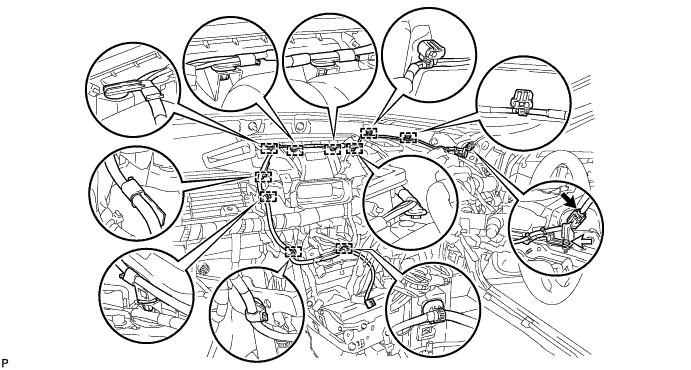

    E220153

  1. Remove the bolt.

  1. Disengage the 10 clamps and remove the antenna cord sub-assembly.



5. REMOVE ROOF HEADLINING ASSEMBLY
(Click here)


6. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

  1. Peel back the tape used to secure the antenna cord only to the extent that allows removal of the No. 2 antenna cord sub-assembly.

    HINT:
    Tape is not available as a supply part. Try to leave as much tape as possible on the roof headlining so that the tape can be reused.



  1. Remove the No. 2 antenna cord sub-assembly from the roof headlining.


    E220162E01


    Text in Illustration
    *1
    		Tape
    		-
    		-
    *a
    		Front Side
    		-
    		-



7. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY


    E221246

  1. Disconnect the connector.

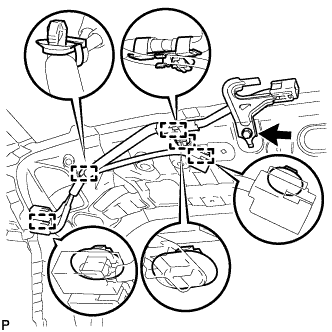

    E220521

  1. Remove the bolt.

  1. Disengage the 5 clamps and remove the No. 3 antenna cord sub-assembly.



8. REMOVE UPPER BACK DOOR TRIM PANEL ASSEMBLY


    B270183

  1. Using a moulding remover, disengage the 4 clips and 4 claws, and remove the upper back door trim panel assembly.



9. REMOVE BACK DOOR SIDE GARNISH LH


    B270184

  1. Disengage the 2 clips, 2 claws and guide, and remove the back door side garnish LH.



10. REMOVE BACK DOOR SIDE GARNISH RH


    B270185

  1. Disengage the 2 clips, 2 claws and guide, and remove the back door side garnish RH.



11. REMOVE BACK DOOR TRIM BOARD ASSEMBLY


    B270186

  1. Using a screwdriver with its tip wrapped in protective tape, slide the handle plate of the back door trim board to disengage it.



    B270188

  1. Disengage the 13 clips and remove the back door trim board assembly.



12. REMOVE NO. 4 ANTENNA CORD SUB-ASSEMBLY


    E221991E01

  1. Remove the bolt.
    Text in Illustration
    *A
    		w/ Rear Wiper
    *1
    		Bolt
    *2
    		Connector
    *3
    		Washer hose

  1. Disconnect the connector.

  1. w/ Rear Wiper:

    1. Disconnect the washer hose.



    E221990E01

  1. Disconnect the connector.

  1. Remove the bolt.
    Text in Illustration
    *1
    		Connector
    *2
    		Bolt
    *3
    		Grommet

  1. Disengage the 5clamps.

  1. Disengage the 2 grommets and remove the No. 4 antenna cord sub-assembly.
