WIPER SWITCH > INSTALLATION

for Preparation Click here



1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY


    E220045

  1. Engage the claw to install the windshield wiper switch assembly as shown in the illustration.

  1. Connect each connector.



2. INSTALL STEERING COLUMN COVER

NOTICE:
If the lower steering column cover is installed in the incorrect order, it will not be possible to assemble the steering column cover.

  1. Engage the 2 claws to install the upper steering column cover.

  1. Engage the 4 clips and 2 guides to install the instrument panel cluster finish panel to the upper steering column cover.

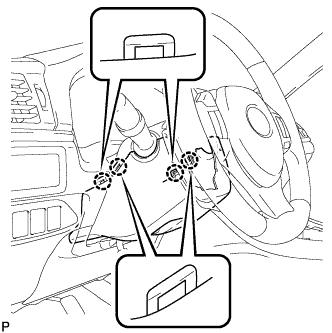

    E220603

  1. Engage the 4 claws.

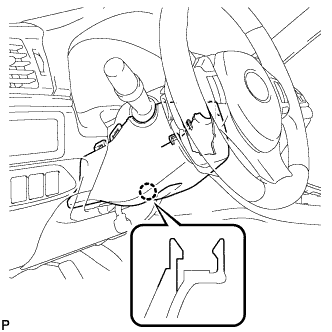

    E220604

  1. Engage the 2 claws.

    HINT:
    Press the area around the claws to engage them.

  1. Turn the steering wheel assembly to the left to install the screw.

    Torque:
    2.0 N*m{ 20 kgf*cm , 18 in.*lbf }

  1. Turn the steering wheel assembly to the right to install the screw.

    Torque:
    2.0 N*m{ 20 kgf*cm , 18 in.*lbf }
