HEADLIGHT CLEANER ACTUATOR > REMOVAL

for Preparation Click here



1. REMOVE FRONT BUMPER ASSEMBLY
(Click here)


2. REMOVE HEADLIGHT CLEANER WASHER NOZZLE


    E220611

  1. Extend the headlight cleaner washer nozzle.

  1. Disengage the 2 claws and remove the headlight cleaner washer nozzle.

    HINT:
    Use the same procedure for the RH side and LH side.



3. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY


    E220612

  1. Disconnect the headlight cleaner hose.



    E220613

  1. Remove the headlight cleaner clamp as shown in the illustration.



    E220615

  1. Pull down the headlight cleaner actuator clamp.

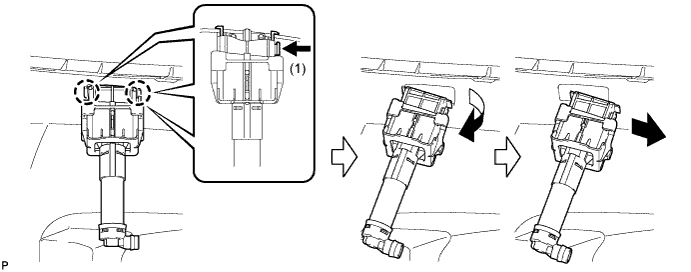

  1. Push the tab shown by allow (1) and disengage the 2 claws and remove the headlight washer actuator sub-assembly as shown in the illustration.


    E220617E01

    HINT:
    Use the same procedure for the RH side and LH side.
