FRONT WIPER MOTOR > REMOVAL

for Preparation Click here



1. REMOVE FRONT WIPER ARM HEAD CAP


    E220011E01

  1. Using a screwdriver, disengage the 3 claws and remove the front wiper arm head cap.
    Text in Illustration
    *1
    		Protective Tape

    HINT:
    1. Tape the screwdriver tip before use.
    2. Use the same procedure for the RH side and LH side.



2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH


    E220013

  1. Remove the nut and the front wiper arm and blade assembly LH.



3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH


    E220014

  1. Remove the nut and the front wiper arm and blade assembly RH.



4. REMOVE FRONT NO. 2 SIDE PANEL PROTECTOR LH


    E220015E01

  1. Disengage the clip and guide, and remove the front No. 2 side panel protector LH.
    Text in Illustration
    *1
    		Double-sided Tape



5. REMOVE FRONT NO. 2 SIDE PANEL PROTECTOR RH

HINT:
Use the same procedure as for the LH side.



6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY


    E220016

  1. Remove the 2 clips.



  1. Disengage the 6 claws and guide as shown in the illustration.


    E220017



  1. Disengage the 7 guides and pull out the cowl top ventilator louver sub-assembly as shown in the illustration.


    E220019



7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

  1. Operate the wiper and stop the windshield wiper motor at the automatic stop position.

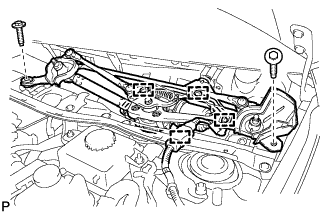

    E220021

  1. Disengage the 4 clamps.

  1. Remove the 2 bolts.

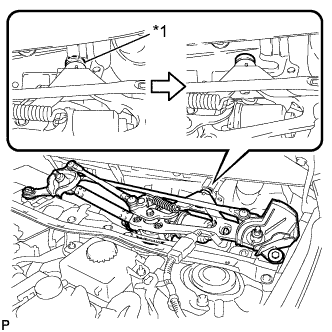

    E220022E01

  1. Disengage the motor grommet and remove the windshield wiper motor and link assembly as shown in the illustration.
    Text in Illustration
    *1
    		Motor Grommet

    NOTICE:
    Be careful not to damage the windshield when removing the windshield wiper motor and link assembly.



    E221101

  1. Disconnect the connector.



8. REMOVE FRONT WIPER CRANK SUB-ASSEMBLY


    E220024E01

  1. Using a screwdriver, separate the No. 1 rod from the crank arm pivot of the front wiper crank sub-assembly as shown in the illustration.
    Text in Illustration
    *1
    		Protective Tape

    HINT:
    Tape the screwdriver tip before use.



    E220026

  1. Remove the nut and the front wiper crank sub-assembly.



9. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY


    E220028

  1. Remove the 3 bolts and the windshield wiper motor assembly.
