HEADLIGHT ASSEMBLY (for Halogen Headlight) > INSTALLATION

for Preparation Click here



1. INSTALL HEADLIGHT ASSEMBLY

  1. Connect each connector.

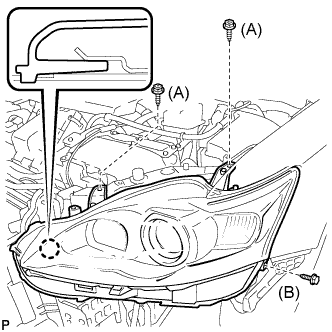

    E220550E01

  1. Engage the claw.

  1. Install the headlight assembly with the bolt and 2 screws.

    Torque:
    Screw (A):
    1.4 N*m{ 14 kgf*cm , 12 in.*lbf }
    Bolt (B):
    5.4 N*m{ 55 kgf*cm , 48 in.*lbf }



2. INSTALL FRONT FENDER SIDE PANEL PROTECTOR

  1. Engage the 2 guides and 3 clips to install the front fender side panel protector.



3. INSTALL FRONT BUMPER ASSEMBLY
(Click here)


4. ADJUST HEADLIGHT AIMING
(Click here)
