HEADLIGHT ASSEMBLY (for LED Headlight) > INSTALLATION

for Preparation Click here



1. INSTALL HEADLIGHT ASSEMBLY

  1. Connect each connector.

  1. Engage the clamp.



    E220551E01

  1. Engage the claw.

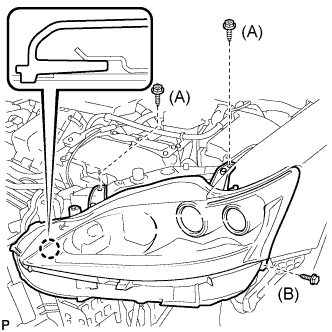

  1. Install the headlight assembly with the bolt and 2 screws.

    Torque:
    Screw (A):
    1.4 N*m{ 14 kgf*cm , 12 in.*lbf }
    Bolt (B):
    5.4 N*m{ 55 kgf*cm , 48 in.*lbf }



2. INSTALL FRONT FENDER SIDE PANEL PROTECTOR

  1. Engage the 2 guides and 3 clips to install the front fender side panel protector.



3. INSTALL FRONT BUMPER ASSEMBLY
(Click here)


4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



5. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE

  1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.



6. INSTALL DECK FLOOR BOX RH

  1. Engage the 6 guides.

  1. Install the deck floor box RH with the clip.



7. INSTALL REAR NO. 3 FLOOR BOARD

  1. Install the rear No. 3 floor board.



8. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



9. INSTALL REAR NO. 2 FLOOR BOARD

  1. Install the rear No. 2 floor board.



10. ADJUST HEADLIGHT AIMING
(Click here)
