HEADLIGHT ASSEMBLY (for Halogen Headlight) > REMOVAL

for Preparation Click here



1. REMOVE FRONT BUMPER ASSEMBLY
(Click here)


2. REMOVE FRONT FENDER SIDE PANEL PROTECTOR


    E220587

  1. Disengage the 3 clips and 2 guides, and remove the front fender side panel protector.



3. REMOVE HEADLIGHT ASSEMBLY

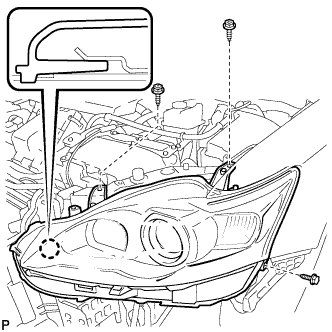

    E220550

  1. Remove the bolt and 2 screws.

  1. Disengage the claw.

  1. Disconnect each connector and remove the headlight assembly.
