HEADLIGHT ASSEMBLY (for LED Headlight) > REMOVAL

for Preparation Click here



1. PRECAUTION

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work (Click here).



2. REMOVE REAR NO. 2 FLOOR BOARD

  1. Remove the rear No. 2 floor board.



3. REMOVE REAR DECK FLOOR BOX

  1. Remove the rear deck floor box.



4. REMOVE REAR NO. 3 FLOOR BOARD

  1. Remove the rear No. 3 floor board.



5. REMOVE DECK FLOOR BOX RH


    B270546

  1. Remove the clip.

  1. Disengage the 6 guides and remove the deck floor box RH.



6. REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE


    B270547

  1. Disengage the 4 claws and 2 guides, and remove the rear floor board upper No. 3 plate.



7. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



8. REMOVE FRONT BUMPER ASSEMBLY
(Click here)


9. REMOVE FRONT FENDER SIDE PANEL PROTECTOR

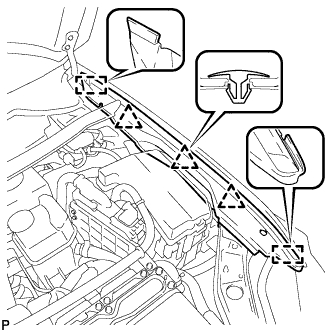

    E220587

  1. Disengage the 3 clips and 2 guides, and remove the front fender side panel protector.



10. REMOVE HEADLIGHT ASSEMBLY

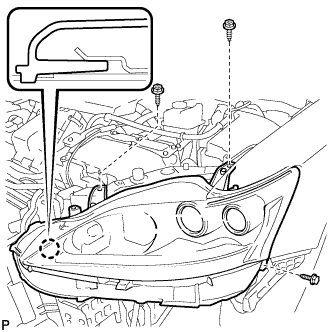

    E220551

  1. Remove the bolt and 2 screws.

  1. Disengage the claw.



    E220552

  1. Disengage the clamp.

  1. Disconnect each connector and remove the headlight assembly.
