HEADLIGHT DIMMER SWITCH > INSTALLATION

for Preparation Click here



1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY


    E194514

  1. Using pliers, expand the clamp as shown in the illustration.



    E194515

  1. While holding the clamp expanded, install the headlight dimmer switch assembly as shown in the illustration.

  1. Engage the claw.

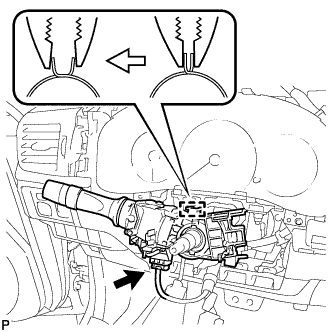

    E220323

  1. Release the clamp to install the headlight dimmer switch assembly.

  1. Connect the connector.



2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY


    E220045

  1. Engage the claw to install the windshield wiper switch assembly as shown in the illustration.

  1. Connect each connector.



3. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
(Click here)
