HEADLIGHT DIMMER SWITCH > REMOVAL

for Preparation Click here



1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
(Click here)


2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY


    E220044

  1. Disconnect each connector.

  1. Disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

    NOTICE:
    If the claw is pushed with excessive force, it may break.



3. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

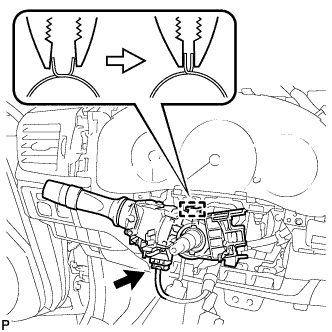

    E220322

  1. Disconnect the connector.

  1. Using pliers, expand the clamp as shown in the illustration.



    E194513

  1. While holding the clamp expanded, disengage the claw and remove the headlight dimmer switch assembly as shown in the illustration.
