HEIGHT CONTROL SENSOR > INSPECTION

for Preparation Click here



1. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

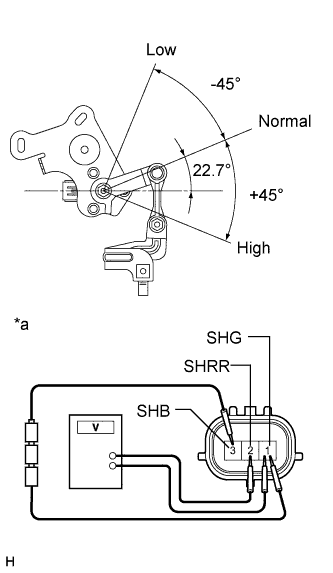

    E223780E01

  1. Connect 3 dry cell batteries (1.5 V) in series.

  1. Connect the positive (+) lead from the batteries to terminal 3 (SHB) and the negative (-) lead from the batteries to terminal 1 (SHG).

  1. Measure the voltage between terminals 2 (SHRR) and 1 (SHG) while slowly moving the link up and down.

    Standard Voltage:
    Tester Connection
    		Condition
    		Specified Condition
    2 (SHRR) - 1 (SHG)
    		+45° (High)
    		4.05 V
    2 (SHRR) - 1 (SHG)
    		0° (Normal)
    		2.25 V
    2 (SHRR) - 1 (SHG)
    		-45° (Low)
    		0.45 V

    Text in Illustration
    *a
    		Component without harness connected
    (Rear Height Control Sensor Sub-assembly)
    If the result is not as specified, replace the rear height control sensor sub-assembly.
