WASHER MOTOR (for Rear Side) > INSTALLATION

for Preparation Click here



1. INSTALL REAR WASHER MOTOR ASSEMBLY


    E220059

  1. Install the rear washer motor and pump assembly.

  1. Connect the connector.

  1. Connect the washer hose.



2. ADD WASHER FLUID

  1. Add washer fluid to the washer jar.



3. INSTALL FRONT FENDER LINER RH

  1. Install the front fender liner RH with the 6 clips and 6 screws.

  1. Install the bolt.

  1. Install 2 new grommets.

  1. Using a 4 mm hexagon wrench, install the 3 screws.

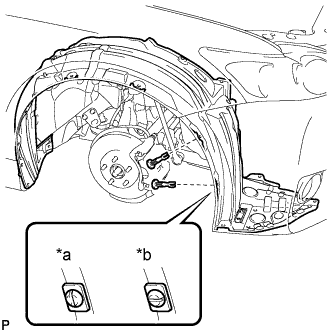

    E220610E01

  1. Install the 2 pin hold clips as shown in the illustration.
    Text in Illustration
    *a
    		Correct
    *b
    		Incorrect

    NOTICE:
    Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is aligned vertically.



4. INSTALL FRONT WHEEL RH

Torque:
103 N*m{ 1050 kgf*cm , 76 ft.*lbf }
