WASHER MOTOR (for Front Side) > REMOVAL

for Preparation Click here



1. REMOVE FRONT WHEEL RH


2. REMOVE FRONT FENDER LINER RH


    E220607E01

  1. Using a screwdriver, turn each pin 90 degrees counterclockwise and remove the 2 pin hold clips.



    E220608

  1. Using a 4 mm hexagon wrench, remove the 3 screws.



    E220609E01

  1. Remove the 6 screws and bolt.

  1. Remove the 6 clips and 2 grommets and front fender liner RH.

    HINT:
    The grommets need to be replaced with new ones because they will break when they are removed.

    Text in Illustration
    *1
    		Grommet



3. DRAIN WASHER FLUID


    E220054

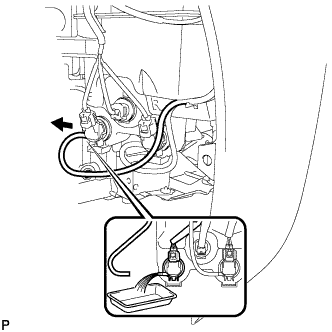

  1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

    HINT:
    Use a container to collect the washer fluid.



4. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY


    E220055

  1. Disconnect the connector.

  1. Remove the windshield washer motor and pump assembly as shown in the illustration.
