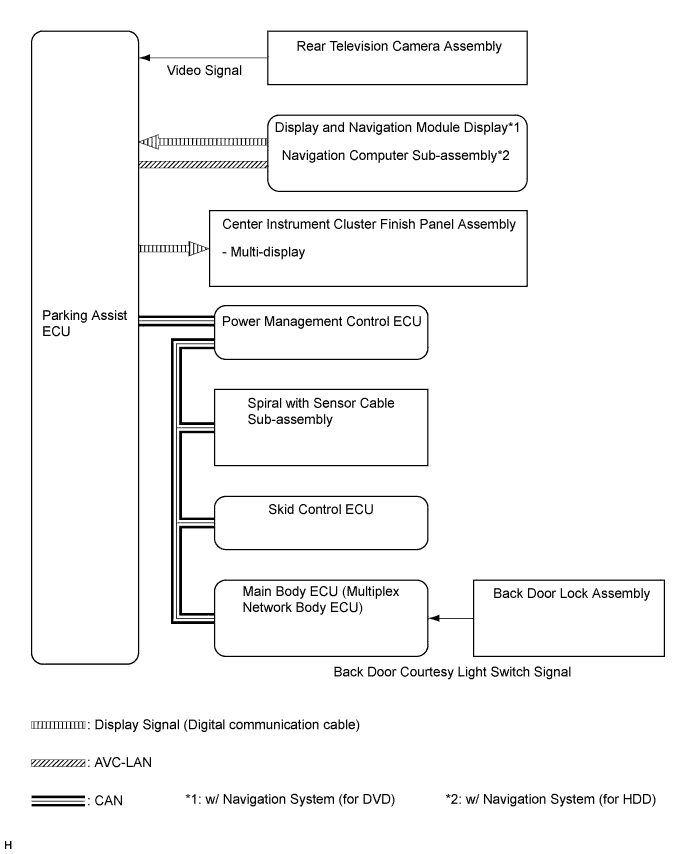

Communication Table
Sender
| Receiver
| Signal
| Line
|
Display and Navigation Module Display*1
| Parking Assist ECU
| - Vehicle angle data
- Shift state
| AVC-LAN
|
Display and Navigation Module Display*1
| Parking Assist ECU
| Display
| Digital communication cable
|
Navigation Computer Sub-assembly*2
| Parking Assist ECU
| - Vehicle angle data
- Shift state
| AVC-LAN
|
Navigation Computer Sub-assembly*2
| Parking Assist ECU
| Display
| Digital communication cable
|
Parking Assist ECU
| Multi-display
| Display
| Digital communication cable
|
Spiral with Sensor Cable Sub-assembly
| Parking Assist ECU
| Steering angle
| CAN
|
Main Body ECU (Multiplex Network Body ECU)
| Parking Assist ECU
| - Shift state
- Vehicle information
| CAN
|
Skid Control ECU
| Parking Assist ECU
| Vehicle speed
| CAN
|
Main Body ECU (Multiplex Network Body ECU)
| Parking Assist ECU
| Back door courtesy light switch
| CAN
|
