HORN > REMOVAL

for Preparation Click here



1. REMOVE FRONT BUMPER ASSEMBLY
(Click here)


2. REMOVE HIGH PITCHED HORN ASSEMBLY

  1. Disconnect the connector.

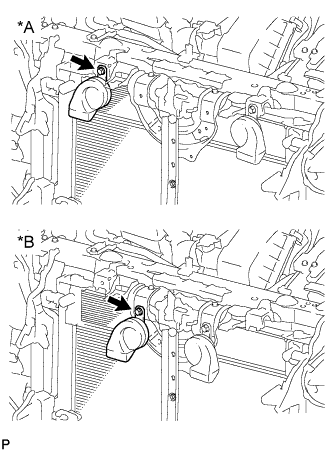

    E220935E01

  1. Remove the bolt and high pitched horn assembly.
    Text in Illustration
    *A
    		for Outer Mounted Type
    *B
    		for Inner Mounted Type



3. REMOVE LOW PITCHED HORN ASSEMBLY

  1. Disconnect the connector.

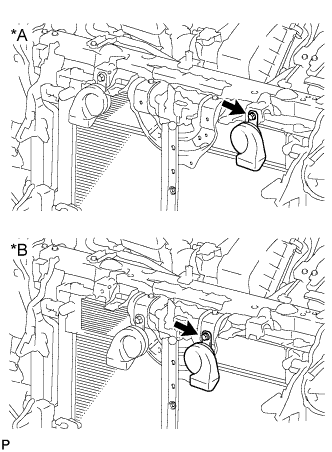

    E220932E01

  1. Remove the bolt and low pitched horn assembly.
    Text in Illustration
    *A
    		for Outer Mounted Type
    *B
    		for Inner Mounted Type
