ROOM TEMPERATURE SENSOR > INSTALLATION

for Preparation Click here



1. INSTALL ROOM TEMPERATURE SENSOR

  1. Engage the 2 claws to install the room temperature sensor to the cooler air hose clamp.



2. INSTALL ROOM TEMPERATURE SENSOR ASSEMBLY

  1. Connect the connector and hose.

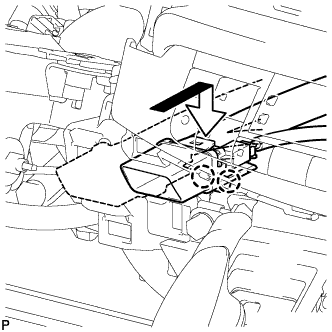

    E220390

  1. Engage the 2 claws and install the room temperature sensor assembly as shown in the illustration.



3. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL


    B271367

  1. Engage the 4 guides and 7 claws to install the lower center instrument panel finish panel.

  1. Close the glove compartment door.
