ROOM TEMPERATURE SENSOR > REMOVAL

for Preparation Click here



1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

  1. Open the glove compartment door.



    B271366

  1. Using a moulding remover, disengage the 7 claws and 4 guides, and remove the lower center instrument panel finish panel as shown in the illustration.



2. REMOVE ROOM TEMPERATURE SENSOR ASSEMBLY

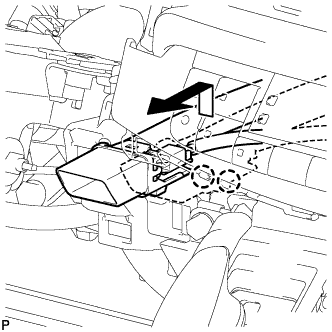

    E220386

  1. Disengage the 2 claws and remove the room temperature sensor assembly as shown in the illustration.



    E220387

  1. Disconnect the hose and connector.



3. REMOVE ROOM TEMPERATURE SENSOR


    E220388

  1. Disengage the 2 claws and remove the room temperature sensor from the cooler air hose clamp.
