TURN SIGNAL FLASHER ASSEMBLY > REMOVAL

for Preparation Click here



1. REMOVE POWER STEERING ECU ASSEMBLY (for LHD)
(Click here)


2. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY (for RHD)

HINT:
Use the same procedure for the RH side and LH side (Click here).



3. REMOVE TURN SIGNAL FLASHER ASSEMBLY (for LHD)

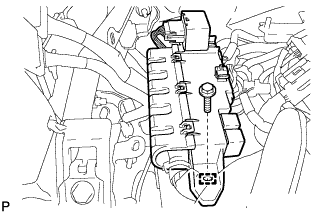

    E220340

  1. Remove the bolt.

  1. Disengage the pin and disconnect the connector holder.



    E220341

  1. Using a screwdriver, disconnect the connector and remove the turn signal flasher assembly.



4. REMOVE TURN SIGNAL FLASHER ASSEMBLY (for RHD)


    E221392

  1. Using a screwdriver, disconnect the connector and remove the turn signal flasher assembly.
