MULTI-MEDIA INTERFACE ECU > REMOVAL

for Preparation Click here



1. REMOVE REAR CONSOLE BOX ASSEMBLY
(Click here)


2. REMOVE MULTI-MEDIA INTERFACE ECU ASSEMBLY

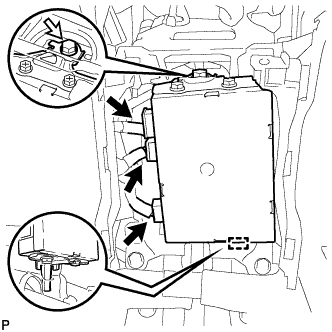

    E220812

  1. Remove the bolt.

  1. Disconnect each connector.

  1. Disengage the guide and remove the multi-media interface ECU assembly.



3. REMOVE NO. 1 MULTI-MEDIA INTERFACE BRACKET


    E220084

  1. Remove the 2 bolts and No. 1 multi-media interface bracket.



4. REMOVE NO. 2 MULTI-MEDIA INTERFACE BRACKET


    E220083

  1. Remove the 2 bolts and No. 2 multi-media interface bracket.
