NAVIGATION RECEIVER > INSTALLATION

for Preparation Click here



1. INSTALL NAVIGATION COMPUTER SUB-ASSEMBLY (w/ Navigation System for HDD)


2. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Navigation System for DVD)


3. INSTALL DISC PLAYER BRACKET

  1. Install the disc player bracket with the 3 bolts.



4. INSTALL NO. 2 DISC PLAYER BRACKET

  1. Install the No. 2 disc player bracket with the 3 bolts.



5. INSTALL HARD DISK DRIVE (w/ Navigation System for HDD)
for Two Screw Type: (Click here)
for One Screw Type: (Click here)


6. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY ASSEMBLY WITH BRACKET

  1. Connect each connector and install the display and navigation module display assembly with bracket.

  1. Install the 4 bolts.



7. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET

  1. Connect each connector.

  1. Install the radio receiver assembly with bracket with the 4 bolts.



8. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

  1. Connect the connector.

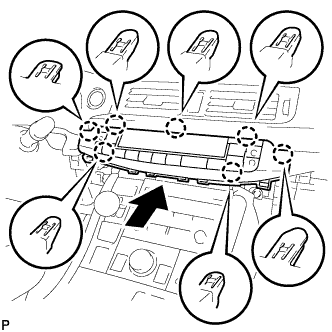

    E220732

  1. Engage the 7 claws to install the air conditioning control assembly.



9. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

  1. Connect each connector.

  1. Engage the clamp.

  1. Engage the 2 guides and 6 claws to install the integration control and panel assembly.



10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY


    B269928

  1. Turn the shift lever knob clockwise and install the shift lever knob sub-assembly.



11. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

  1. Connect each connector.

  1. Engage the clamp.



    B269924

  1. Engage the 12 claws to install the upper console panel sub-assembly.

    NOTICE:
    When installing the upper console panel sub-assembly, make sure not to pinch the wire harness connected to the front end of the remote touch (w/ Navigation System).

  1. Close the console compartment door.



12. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

  1. Engage the 2 guides, clip and 5 claws to install the upper No. 2 console panel garnish.



13. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH

  1. Engage the 3 guides, clip and 4 claws to install the upper No. 1 console panel garnish.



14. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL


    B271367

  1. Engage the 4 guides and 7 claws to install the lower center instrument panel finish panel.

  1. Close the glove compartment door.



15. INSTALL NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Metal Finish Panel and Urethane Panel)

  1. Engage the 5 clips to install the No. 3 instrument cluster finish panel garnish.



16. INSTALL NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Wood Panel and Bamboo Panel)

  1. Engage the 4 clips to install the No. 3 instrument cluster finish panel garnish.



17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

HINT:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



18. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE

  1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.



19. INSTALL DECK FLOOR BOX RH

  1. Engage the 6 guides.

  1. Install the deck floor box RH with the clip.



20. INSTALL REAR NO. 3 FLOOR BOARD

  1. Install the rear No. 3 floor board.



21. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



22. INSTALL REAR NO. 2 FLOOR BOARD

  1. Install the rear No. 2 floor board.



23. ADJUST CLOCK
