NAVIGATION RECEIVER > REMOVAL

for Preparation Click here



1. PRECAUTION
(Click here)

NOTICE:
  1. After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Click here).
  2. A hard disk drive (HDD) is built into the display and navigation module display to store map and other data and is used for the navigation system. Therefore, make sure to read all of the precautions thoroughly before handling the display and navigation module display.



2. REMOVE REAR NO. 2 FLOOR BOARD

  1. Remove the rear No. 2 floor board.



3. REMOVE REAR DECK FLOOR BOX

  1. Remove the rear deck floor box.



4. REMOVE REAR NO. 3 FLOOR BOARD

  1. Remove the rear No. 3 floor board.



5. REMOVE DECK FLOOR BOX RH


    B270546

  1. Remove the clip.

  1. Disengage the 6 guides and remove the deck floor box RH.



6. REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE


    B270547

  1. Disengage the 4 claws and 2 guides, and remove the rear floor board upper No. 3 plate.



7. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

HINT:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



8. REMOVE NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Metal Finish Panel and Urethane Panel)


    B269877

  1. Disengage the 5 clips and remove the No. 3 instrument cluster finish panel garnish.



9. REMOVE NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Wood Panel and Bamboo Panel)


    B271369

  1. Disengage the 4 clips and remove the No. 3 instrument cluster finish panel garnish.



10. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

  1. Open the glove compartment door.



    B271366

  1. Using a moulding remover, disengage the 7 claws and 4 guides, and remove the lower center instrument panel finish panel as shown in the illustration.



11. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH


    B269919

  1. Disengage the 5 claws, clip and 2 guides, and remove the upper No. 2 console panel garnish.



12. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH


    B269921

  1. Disengage the 4 claws, clip and 3 guides, and remove the upper No. 1 console panel garnish.



13. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

  1. Open the console compartment door.



    B269923

  1. Using a moulding remover, disengage the 12 claws.

  1. Disengage the clamp.

  1. Disconnect each connector and remove the upper console panel sub-assembly.



14. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY


    B269927

  1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.



15. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY


    B269931

  1. Disengage the 6 claws and 2 guides.

  1. Disengage the clamp.

  1. Disconnect each connector and remove the integration control and panel assembly.



16. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

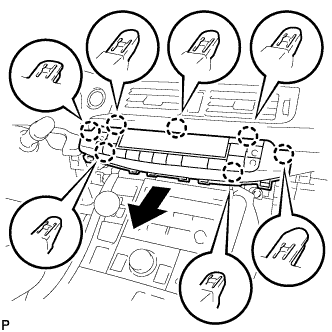

    E220731

  1. Disengage the 7 claws and remove the air conditioning control assembly as shown in the illustration.

  1. Disconnect the connector.



17. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

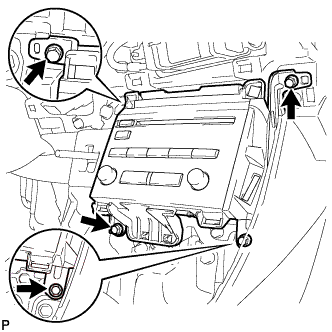

    E220085

  1. Remove the 4 bolts.

  1. Pull the radio receiver assembly with bracket toward the rear of the vehicle.

  1. Disconnect each connector and remove the radio receiver assembly with bracket.



18. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY ASSEMBLY WITH BRACKET


    E220530

  1. Remove the 4 bolts.

  1. Disconnect each connector and remove the display and navigation module display assembly with bracket.



19. REMOVE HARD DISK DRIVE (w/ Navigation System for HDD)
for Two Screw Type: (Click here)
for One Screw Type: (Click here)


20. REMOVE DISC PLAYER BRACKET


    E220102

  1. Remove the 3 bolts and disc player bracket.



21. REMOVE NO. 2 DISC PLAYER BRACKET


    E220103

  1. Remove the 3 bolts and No. 2 disc player bracket.



22. REMOVE NAVIGATION COMPUTER SUB-ASSEMBLY (w/ Navigation System for HDD)


23. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Navigation System for DVD)
