NAVIGATION ANTENNA > REMOVAL

for Preparation Click here



1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY
(Click here)


2. REMOVE NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY


    B269909

  1. Remove the 3 screws <B>.

  1. Disengage the claw and remove the No. 1 heater to register duct sub-assembly.



3. REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

HINT:
Use the same procedure described for the No. 1 heater to register duct sub-assembly.



4. REMOVE DEFROSTER NOZZLE ASSEMBLY


    B269911

  1. Remove the 3 screws <B> and defroster nozzle assembly.



5. REMOVE NAVIGATION ANTENNA ASSEMBLY (for LHD)


  1. Remove the 3 screws.


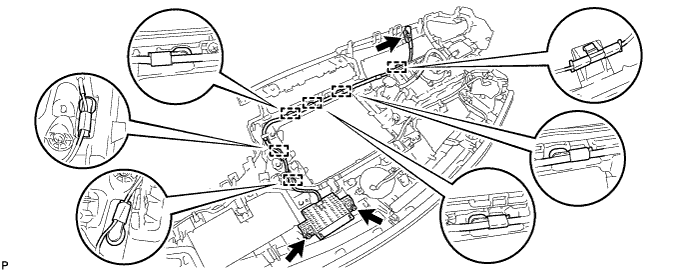

    E220098

  1. Disengage the 6 clamps and remove the navigation antenna assembly.



6. REMOVE NAVIGATION ANTENNA ASSEMBLY (for RHD)


  1. Remove the 3 screws.

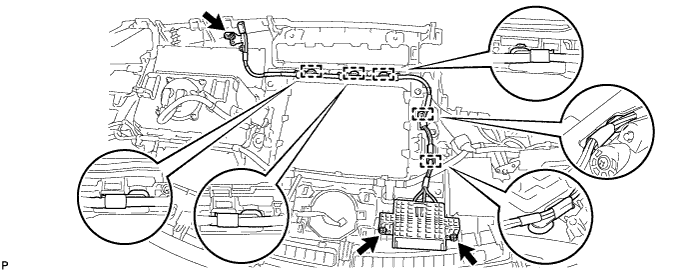

    E221945

  1. Disengage the 5 clamps and remove the navigation antenna assembly.
