DTC    B1596    No Response from Remote Touch

DTC    B1563    Remote Touch Disconnected

for Preparation Click here


DESCRIPTION

The display and navigation module display and remote touch are connected by the MOST communication line.
When a MOST communication error occurs between the display and navigation module display and remote touch, these DTCs will be stored.

DTC No.
DTC Detection Condition
Trouble Area
B1596
No response to the diagnostic memory request from the master unit.
  1. Remote touch power source circuit
  2. MOST circuit between stereo component amplifier assembly and remote touch
  3. MOST circuit between remote touch and display and navigation module display
  4. Remote touch (remote operation board)
  5. Display and navigation module display
B1563
A device that is listed in the MOST network connected device record of the master unit is missing.

HINT:
For the MOST network, the display and navigation module display is the master unit.

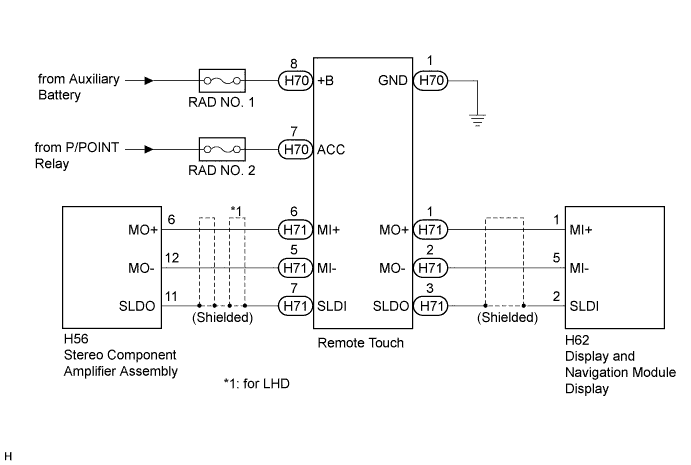

WIRING DIAGRAM


E222489E02


INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

1.CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

  1. Check for optional components.

    1. Check that optional components (including associated wiring) which generate radio waves are not installed.

      Result:
      Result
      		Proceed to
      Optional components (including associated wiring) are installed.
      		A
      Optional components (including associated wiring) are not installed.
      		B

      HINT:
      1. Electrical noise from radio waves generated by optional components or the wiring for those components may affect MOST communication.
      2. This DTC may be stored when a MOST communication error occurs due to electrical noise.



B
Go to step 3
A


2.REMOVE OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

  1. Remove optional components (including associated wiring).

    NOTICE:
    Do not remove optional components or associated wiring without the permission of the customer.


NEXT


3.CHECK DTC

  1. Clear the DTCs (Click here).

  1. Recheck for DTCs and check if the same DTC is output again.

    OK:
    No DTCs are output.



NG
Go to step 4
OK

END

4.CHECK HARNESS AND CONNECTOR (REMOTE TOUCH POWER SOURCE)

  1. Disconnect the H70 remote touch connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    H70-1 (GND) - Body ground
    		Always
    		Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		Condition
    		Specified Condition
    H70-8 (+B) - H70-1 (GND)
    		Power switch off
    		11 to 14 V
    H70-7 (ACC) - H70-1 (GND)
    		Power switch on (ACC)
    		11 to 14 V



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


5.CHECK HARNESS AND CONNECTOR

  1. Disconnect the H71 remote touch connector.

  1. Disconnect the H56 stereo component amplifier assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    H71-6 (MI+) - H56-6 (MO+)
    		Always
    		Below 1 Ω
    H71-5 (MI-) - H56-12 (MO-)
    		Always
    		Below 1 Ω
    H71-7 (SLDI) - H56-11 (SLDO)
    		Always
    		Below 1 Ω
    H71-6 (MI+) - Body ground
    		Always
    		10 kΩ or higher
    H71-5 (MI-) - Body ground
    		Always
    		10 kΩ or higher
    H71-7 (SLDI) - Body ground
    		Always
    		10 kΩ or higher



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


6.CHECK HARNESS AND CONNECTOR

  1. Disconnect the H71 remote touch connector.

  1. Disconnect the H62 display and navigation module display connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    H71-1 (MO+) - H62-1 (MI+)
    		Always
    		Below 1 Ω
    H71-2 (MO-) - H62-5 (MI-)
    		Always
    		Below 1 Ω
    H71-3 (SLDO) - H62-2 (SLDI)
    		Always
    		Below 1 Ω
    H71-1 (MO+) - Body ground
    		Always
    		10 kΩ or higher
    H71-2 (MO-) - Body ground
    		Always
    		10 kΩ or higher
    H71-3 (SLDO) - Body ground
    		Always
    		10 kΩ or higher



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


7.REPLACE REMOTE OPERATION BOARD

  1. Replace the remote operation board (Click here).

  1. Clear the DTCs (Click here).

  1. Recheck for DTCs and check if the same DTC is output again.

    OK:
    No DTCs are output.



NG
REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY (Click here)
OK

END
