NOISE FILTER > REMOVAL

for Preparation Click here

1. Remove the rear No. 2 floor board.


1. Remove the rear deck floor box.


1. Remove the rear No. 3 floor board.


1. Remove the clip.


2. Disengage the 6 guides and remove the deck floor box RH.


1. Disengage the 2 claws and 2 clips, and remove the rear No. 1 floor board sub-assembly.


1. Disengage the claw and 2 clips, and remove the rear No. 2 floor board sub-assembly.


1. Remove the bolt.


2. Disengage the 2 claws and 2 clips, and remove the rear No. 1 floor board.


1. Disengage the 2 claws and guide (A).


2. Disengage the 2 guides (B) and remove the deck trim service hole cover.


1. Disengage the 4 clips and remove the rear deck trim cover.


1. Disengage the 4 claws, 2 guides and 2 clips, and remove the rear door scuff plate LH.


1. Remove the rear door opening trim weatherstrip LH.


2. Remove the residual weatherstrip sealant from the body of the vehicle using cleaner.


   NOTICE:

   Remove the sealant completely. Any residual sealant may transfer to other areas of the vehicle when removing/installing the interior parts.

1. Disengage the hook of the seat cushion from the vehicle body as shown in the illustration.


   NOTICE:

   Follow the instructions below carefully as the cushion frame can be deformed easily.







   1. Choose a hook to disengage first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to disengage the hook.


      Text in Illustration

      *1	Hook
      *2	Guide

      Standard Measurement

      *a	100 mm (3.94 in.) or less

   2. Repeat the step above for the other hook.


2. Disengage the guide of the seat cushion from the seatback.


3. Remove the bolt and disconnect the rear center seat outer belt assembly.


4. Pull out the rear center seat outer belt assembly from the rear seat cushion assembly.


5. Remove the rear seat cushion assembly.


1. Disengage the claw and remove the rear seat cushion lock hook.


   NOTICE:

   Rear seat cushion lock hooks must not be reused.

   HINT:

   Use the same procedure the LH side and RH side.

1. Disengage the fastener and disconnect the rear No. 2 floor board sub-assembly.


2. Remove the 2 bolts and rear seatback assembly LH.


   NOTICE:

   Be careful not to damage the vehicle body.

1. Remove the clip.


2. Disengage the 6 claws and remove the rear seat side garnish LH.


1. Using a screwdriver, disengage the 2 claws.


   Text in Illustration

   *1	Protective Tape

   HINT:

   Tape the screwdriver tip before use.

2. Remove the bolt and the rope hook assembly.


1. Remove the bolt.


2. Disengage the guide and remove the luggage hold belt striker assembly.


1. Using a screwdriver, disengage the 2 claws and pin, and remove the tonneau cover hook.


   Text in Illustration

   *1	Protective Tape

   HINT:

   Tape the screwdriver tip before use.

1. Using a screwdriver, disengage the claws and guide, and remove the tonneau cover holder cap.


   Text in Illustration

   *1	Protective Tape

   HINT:

   Tape the screwdriver tip before use.

1. Remove the 3 screws.


2. Disengage the 4 claws and 3 clips, and remove the deck trim side panel assembly LH.








NOTICE:

When the terminal cover is removed, the radio setting condenser must be replaced because the terminal cover and condenser are supplied as a set.

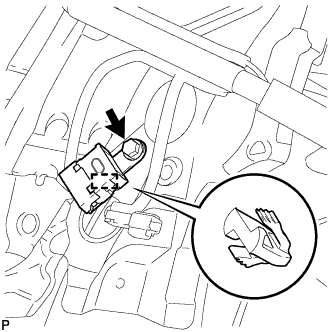

1. Remove the bolt.


2. Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.


3. Using a screwdriver, disengage the 3 claws and remove the terminal cover with wire harness from the condenser.


4. Using a screwdriver, bend back and break off the claw as shown in the illustration.








5. Remove the terminal cover from the wire harness.


NOTICE:

When the terminal cover is removed, the radio setting condenser must be replaced because the terminal cover and condenser are supplied as a set.

1. Remove the bolt.


2. Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.


3. Using a screwdriver, disengage the 3 claws and remove the terminal cover with wire harness from the condenser.


4. Using a screwdriver, bend back and break off the claw as shown in the illustration.








5. Remove the terminal cover from the wire harness.


1. Using a moulding remover, disengage the 4 clips and 4 claws, and remove the upper back door trim panel assembly.


1. Disengage the 2 clips, 2 claws and guide, and remove the back door side garnish LH.


1. Disengage the 2 clips, 2 claws and guide, and remove the back door side garnish RH.


1. Using a screwdriver with its tip wrapped in protective tape, slide the handle plate of the back door trim board to disengage it.


2. Disengage the 13 clips and remove the back door trim board assembly.


NOTICE:

When the terminal cover is removed, the radio setting condenser must be replaced because the terminal cover and condenser are supplied as a set.

1. Remove the bolt.


2. Disengage the clamp and disconnect the radio setting condenser with wire harness from the vehicle body.


3. Using a screwdriver, disengage the 3 claws and remove the terminal cover with wire harness from the condenser.


4. Using a screwdriver, bend back and break off the claw as shown in the illustration.








5. Remove the terminal cover from the wire harness.
