ENTRY AND START SYSTEM > PARTS LOCATION |

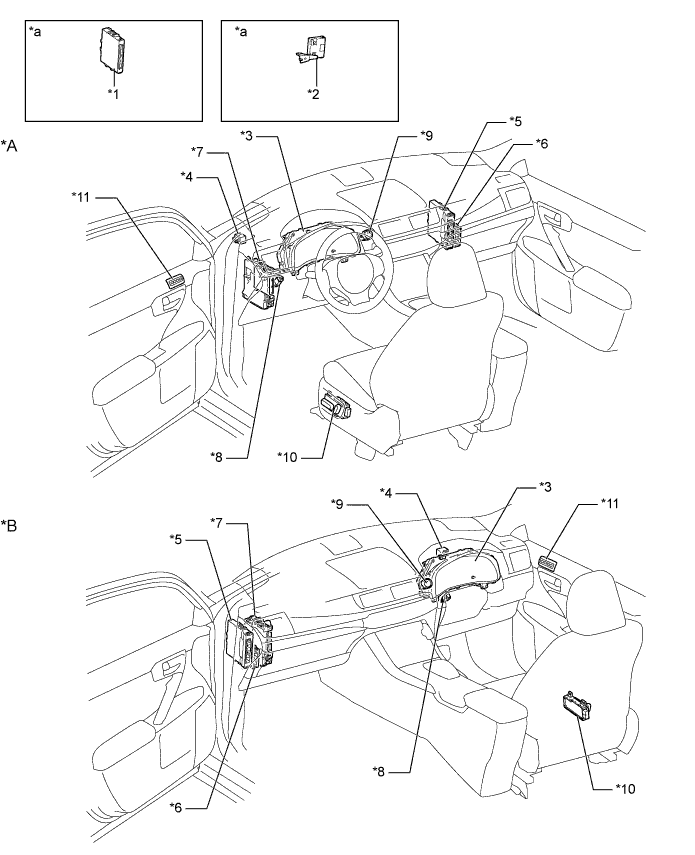

| *A | LHD Models | *B | RHD Models |
| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | ID Code Box (Immobiliser Code ECU) |
| *3 | Combination Meter Assembly - Buzzer - Master Warning Light - Multi Information Display | *4 | Turn Signal Flasher |
| *5 | Power Management Control ECU | *6 | Transmission Control ECU Assembly |
| *7 | Instrument Panel Junction Block Assembly - Main Body ECU (Multiplex Network Body ECU) - IG1 No. 1 Relay - IG1 No. 2 Relay - IG1 No. 3 Relay - ACC1 Relay | *8 | Stop Light Switch Assembly |
| *9 | Power Switch - Transponder Key Amplifier | *10 | Position Control ECU and Switch Assembly |
| *11 | Memory Switch | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

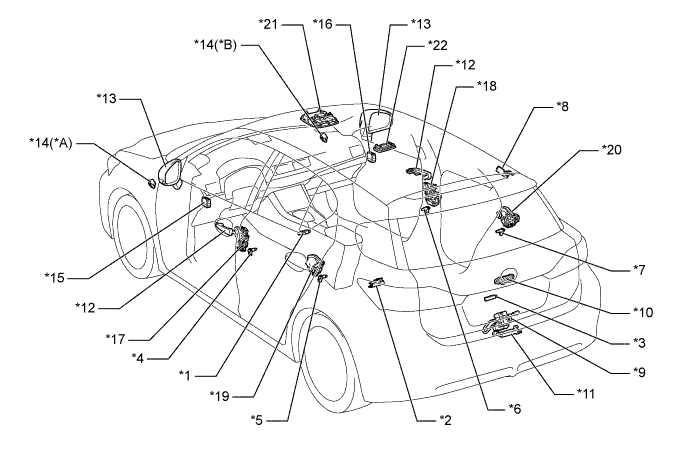

| *A | LHD Models | *B | RHD Models |
| *1 | Indoor Electrical Key Oscillator (Front) | *2 | Indoor Electrical Key Oscillator (Center) |
| *3 | Indoor Electrical Key Oscillator (Rear) | *4 | Front Door Courtesy Light Switch Assembly (LH) |
| *5 | Rear Door Courtesy Light Switch Assembly (LH) | *6 | Front Door Courtesy Light Switch Assembly (RH) |
| *7 | Rear Door Courtesy Light Switch Assembly (RH) | *8 | Door Control Receiver |
| *9 | Back Door Lock Assembly - Back Door Courtesy Switch | *10 | Back Door Opener Switch - Back Door Opener Switch - Back Door Lock Switch |
| *11 | Outside Electrical Key Oscillator (Back Door) | *12 | Outside Door Handle - Touch Sensor - Lock Sensor - Door Electrical Key Oscillator |
| *13 | Outside Rear View Mirror Assembly - Foot Light | *14 | Wireless Door Lock Buzzer |
| *15 | Outer Mirror Control ECU LH | *16 | Outer Mirror Control ECU RH |
| *17 | Door with Motor Lock Assembly LH - Door Lock Motor - Door Unlock Detection Switch | *18 | Door with Motor Lock Assembly RH - Door Lock Motor - Door Unlock Detection Switch |
| *19 | Rear Door with Motor Lock Assembly LH - Door Lock Motor - Door Unlock Detection Switch | *20 | Rear Door with Motor Lock Assembly RH - Door Lock Motor - Door Unlock Detection Switch |
| *21 | Map Light Assembly - Interior Light | *22 | No. 1 Room Light Assembly |
